Auto-Boy 204

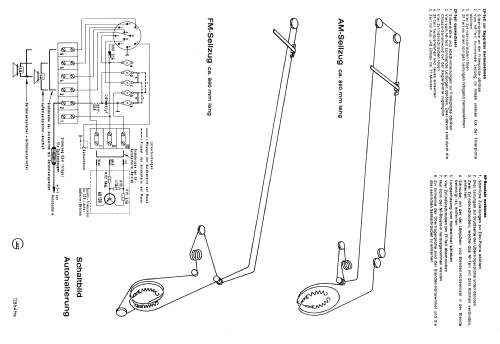

Auto-Boy 204; Grundig Radio- (ID = 61257) Radio

Auto-Boy 204; Grundig Radio- (ID = 61258) Radio

Auto-Boy 204; Grundig Radio- (ID = 61259) Radio

Auto-Boy 204; Grundig Radio- (ID = 61260) Radio

Auto-Boy 204; Grundig Radio- (ID = 61261) Radio
Auto-Boy 204; Grundig Radio- (ID = 297) Radio Auto-Boy 204; Grundig Radio- (ID = 75518) Radio
Auto-Boy 204; Grundig Radio- (ID = 75519) Radio
Use red slider bar for more.
Auto-Boy 204; Grundig Radio- (ID = 297) Radio
Grundig Radio-: Auto-Boy 204 [Radio] ID = 297 557x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Auto-Boy 204, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF102 AF125 AF121 AF126 AF126 AF126 AC151r AC151 AC153 AC153
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Auto-Boy 204 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 240 x 160 x 60 mm / 9.4 x 6.3 x 2.4 inch
Notes

Betrieb im Auto über Autohalterung (40,- DM) aus 6-V-Autobatterie
(bei 12-V-Betrieb über 12-V-Transistor-Adapter), dann NF-Leistung 2 W.

Net weight (2.2 lb = 1 kg) 2.1 kg / 4 lb 10 oz (4.626 lb)
Price in first year of sale 410.00 DM
Source of data Handbuch VDRG 1964/1965 / Radiokatalog Band 1, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
