Auto-Cassetten-Tonandgerät AC60

Auto-Cassetten-Tonandgerät AC60; Grundig Radio- (ID = 288391) R-Player

Auto-Cassetten-Tonandgerät AC60; Grundig Radio- (ID = 288392) R-Player

Auto-Cassetten-Tonandgerät AC60; Grundig Radio- (ID = 441423) R-Player
Auto-Cassetten-Tonandgerät AC60; Grundig Radio- (ID = 1287846) R-Player Auto-Cassetten-Tonandgerät AC60; Grundig Radio- (ID = 441413) R-Player

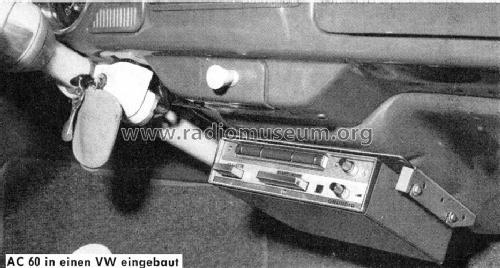

Auto-Cassetten-Tonandgerät AC60; Grundig Radio- (ID = 441442) R-Player Auto-Cassetten-Tonandgerät AC60; Grundig Radio- (ID = 724775) R-Player
Auto-Cassetten-Tonandgerät AC60; Grundig Radio- (ID = 1287842) R-Player Auto-Cassetten-Tonandgerät AC60; Grundig Radio- (ID = 1287845) R-Player
Auto-Cassetten-Tonandgerät AC60; Grundig Radio- (ID = 1287847) R-Player Auto-Cassetten-Tonandgerät AC60; Grundig Radio- (ID = 1287848) R-Player
Auto-Cassetten-Tonandgerät AC60; Grundig Radio- (ID = 1287850) R-Player Auto-Cassetten-Tonandgerät AC60; Grundig Radio- (ID = 1287851) R-Player
Use red slider bar for more.
Auto-Cassetten-Tonandgerät AC60; Grundig Radio- (ID = 1287846) R-Player
Grundig Radio-: Auto-Cassetten-Tonandgerät AC60 [R-Player] ID = 1287846 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Auto-Cassetten-Tonandgerät AC60, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1966–1968 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 14:
Main principle Audio-Amplification; 6 AF stage(s)
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Auto-Cassetten-Tonandgerät AC60 - Grundig Radio-Vertrieb, RVF,
Material Metal case
Dimensions (WHD) 250 x 70 x 220 mm / 9.8 x 2.8 x 8.7 inch
Notes Transistoren: BCY51r, 5× BFY39, BSX24, 3× AD152, 3× AC117, AC122; Dioden: 6× G580, 1103, ZF7,5.
Transistoren laut Schaltplan: BCY51r, 5 x BFY39, BC108, 3 x AD162, 3 x AC117, AC122.
Start-Taste schaltet die Lautsprecher vom Autoradio zum AC60 um.
Net weight (2.2 lb = 1 kg) 3.7 kg / 8 lb 2.4 oz (8.15 lb)
External source of data erb
Source of data Handbuch VDRG 1966/1967
Mentioned in -- Original prospect or advert (Grundig Katalog 1967 - Schaufenster - Seite 31)
Literature/Schematics (1) -- Original-techn. papers. (Grundig Technische Informationen 2 - 1966)
