Auto Cassetten Tonbandgerät AC125

Auto Cassetten Tonbandgerät AC125; Grundig Radio- (ID = 402573) R-Player

Auto Cassetten Tonbandgerät AC125; Grundig Radio- (ID = 1437837) R-Player

Auto Cassetten Tonbandgerät AC125; Grundig Radio- (ID = 2480986) R-Player
Auto Cassetten Tonbandgerät AC125; Grundig Radio- (ID = 1559070) R-Player Auto Cassetten Tonbandgerät AC125; Grundig Radio- (ID = 402576) R-Player
Auto Cassetten Tonbandgerät AC125; Grundig Radio- (ID = 1559496) R-Player Auto Cassetten Tonbandgerät AC125; Grundig Radio- (ID = 1559497) R-Player
Auto Cassetten Tonbandgerät AC125; Grundig Radio- (ID = 1559500) R-Player Auto Cassetten Tonbandgerät AC125; Grundig Radio- (ID = 1559506) R-Player
Auto Cassetten Tonbandgerät AC125; Grundig Radio- (ID = 2224303) R-Player Auto Cassetten Tonbandgerät AC125; Grundig Radio- (ID = 2224304) R-Player
Auto Cassetten Tonbandgerät AC125; Grundig Radio- (ID = 2224305) R-Player Auto Cassetten Tonbandgerät AC125; Grundig Radio- (ID = 2224306) R-Player
Use red slider bar for more.
Auto Cassetten Tonbandgerät AC125; Grundig Radio- (ID = 1559070) R-Player
Grundig Radio-: Auto Cassetten Tonbandgerät AC125 [R-Player] ID = 1559070 933x647
Select picture or schematic to display from thumbnails on the right and click for download.
For model Auto Cassetten Tonbandgerät AC125, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Q: Grundig, Service-Unterlagen

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1975–1978 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 8: BC330 BC239 BC238 BC238 BC239 BC238 BC238 GD183
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Auto Cassetten Tonbandgerät AC125 - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 160 x 49 x 120 mm / 6.3 x 1.9 x 4.7 inch
Notes Auto-Cassetten-Spieler zur Kombination mit Autosuper. Übertragungsbereich: 80···10000 Hz.
Net weight (2.2 lb = 1 kg) 0.9 kg / 1 lb 15.7 oz (1.982 lb)
Source of data Handbuch VDRG 1977/1978
Mentioned in Grundig Technische Informationen 5/6-1975

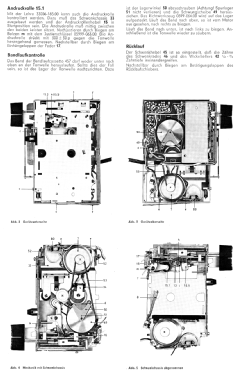

Literature/Schematics (2) -- Original-techn. papers. (Service-Anleitung AC125)

Model page created by Hilmer Grunert. See "Data change" for further contributors.
