C2001 Automatic

C2001 Automatic; Grundig Radio- (ID = 75121) Radio

C2001 Automatic; Grundig Radio- (ID = 75123) Radio

C2001 Automatic; Grundig Radio- (ID = 75124) Radio

C2001 Automatic; Grundig Radio- (ID = 75122) Radio

C2001 Automatic; Grundig Radio- (ID = 75125) Radio
C2001 Automatic; Grundig Radio- (ID = 996514) Radio C2001 Automatic; Grundig Radio- (ID = 75066) Radio
C2001 Automatic; Grundig Radio- (ID = 829370) Radio C2001 Automatic; Grundig Radio- (ID = 981298) Radio
C2001 Automatic; Grundig Radio- (ID = 996515) Radio C2001 Automatic; Grundig Radio- (ID = 996516) Radio
C2001 Automatic; Grundig Radio- (ID = 2254514) Radio C2001 Automatic; Grundig Radio- (ID = 2254515) Radio
C2001 Automatic; Grundig Radio- (ID = 2254516) Radio C2001 Automatic; Grundig Radio- (ID = 2254517) Radio
Use red slider bar for more.

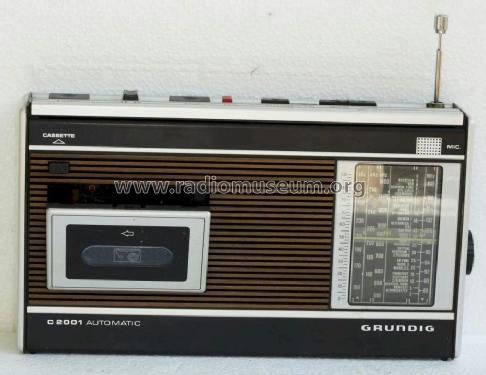

C2001 Automatic; Grundig Radio- (ID = 996514) Radio
Grundig Radio-: C2001 Automatic [Radio] ID = 996514 933x719
Select picture or schematic to display from thumbnails on the right and click for download.
For model C2001 Automatic, Grundig (Radio-Vertrieb, RVF, Radiowerke):
donnie-yen 370509825370

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1974–1976 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 19:
Main principle Superheterodyne (common)
Tuned circuits 5 AM circuit(s)     7 FM circuit(s)
Wave bands Wave Bands given in the notes.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 110-220; (5 × 1,5) Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: C2001 Automatic - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 310 x 170 x 60 mm / 12.2 x 6.7 x 2.4 inch
Notes Grundig Radio-Recorder C2001 Automatic.
NF-Ausgangsleistung bei Netzbetrieb: 1,7 W.
2 Ausführungen: MW/KW/UKW und LW/MW/UKW. Eingebautes Mikrophon, Longlife-Kopf, Ausführung: nußbaumfarben oder schwarz. Verkauf über die Weltfunk anlässlich der Funkausstellung 1975.
External source of data Erb
Source of data Katalog RFP 1974
Mentioned in Handbuch VDRG 1975/1976
Literature/Schematics (1) -- Original-techn. papers.
