C420 Automatic

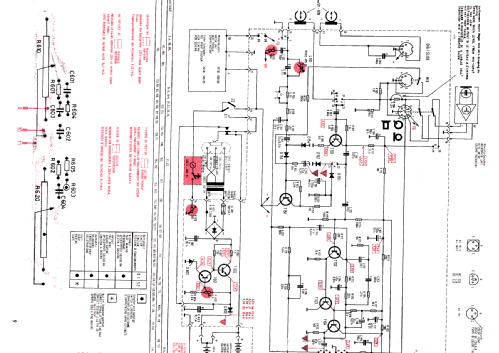

C420 Automatic; Grundig Radio- (ID = 104202) R-Player

C420 Automatic; Grundig Radio- (ID = 104203) R-Player

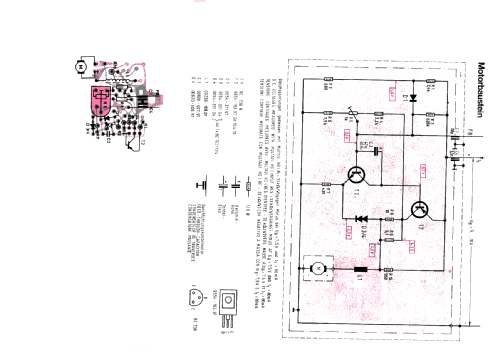

C420 Automatic; Grundig Radio- (ID = 104204) R-Player
C420 Automatic; Grundig Radio- (ID = 54524) R-Player C420 Automatic; Grundig Radio- (ID = 480126) R-Player
C420 Automatic; Grundig Radio- (ID = 480127) R-Player C420 Automatic; Grundig Radio- (ID = 750517) R-Player

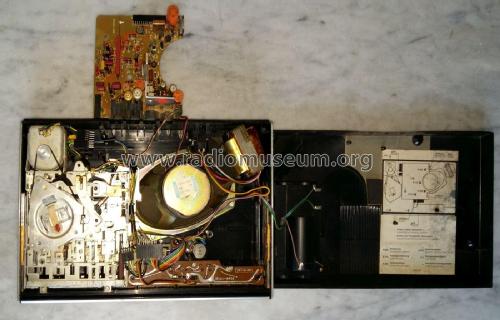

C420 Automatic; Grundig Radio- (ID = 2510572) R-Player C420 Automatic; Grundig Radio- (ID = 2510573) R-Player
C420 Automatic; Grundig Radio- (ID = 2510575) R-Player C420 Automatic; Grundig Radio- (ID = 2510577) R-Player
Use red slider bar for more.

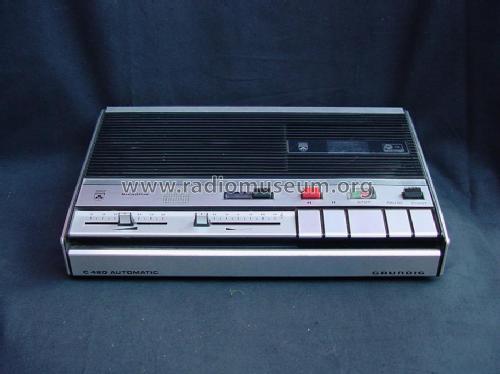

C420 Automatic; Grundig Radio- (ID = 54524) R-Player
Grundig Radio-: C420 Automatic [R-Player] ID = 54524 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model C420 Automatic, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1973–1976 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 14: BC239 BC308 BC238 AC121 AC187 AC188 BD135 B20C550
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 120-127; 220-230 / 5 × 1,5 or 6 (Akku) Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.2 W (unknown quality)
from Radiomuseum.org Model: C420 Automatic - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 310 x 60 x 200 mm / 12.2 x 2.4 x 7.9 inch
Notes

Im Grundig Cassetten-Tonbandgerät C420 Automaticist ein Kondensator-Mikrofon eingebaut; automatische Aussteuerung; Übertragungsbereich: 80-10000 Hz. Spezialtonkopf für synchrone Diavertonung mittels Impulssystem, Tricktechnik; Batterie-Akku-Netzbetrieb (Akku: Dryfit PC 3Cx2U 6 V).

Transistoren nur einmal pro Typ gelistet.

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
External source of data Erb
Source of data Katalog RFP 1973
Mentioned in Handbuch VDRG 1974/1975 (und 1975/76)
Literature/Schematics (1) -- Original-techn. papers.
