Autoradio WK 2820 VD

Autoradio WK 2820 VD; Grundig Radio- (ID = 2207689) Car Radio Autoradio WK 2820 VD; Grundig Radio- (ID = 2393628) Car Radio
Use red slider bar for more.
Autoradio WK 2820 VD; Grundig Radio- (ID = 2207689) Car Radio
Grundig Radio-: Autoradio WK 2820 VD [Car Radio] ID = 2207689 1165x415
Select picture or schematic to display from thumbnails on the right and click for download.
For model Autoradio WK 2820 VD, Grundig (Radio-Vertrieb, RVF, Radiowerke):

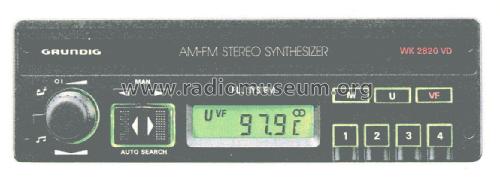

Bild aus Grundig Revue 1988

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1986–1989 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 40 W (max.)
from Radiomuseum.org Model: Autoradio WK 2820 VD - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 179 x 51 x 51 mm / 7 x 2 x 2 inch
Notes

Grundig Autoradio WK 2820 VD mit PLL- Frequenz- Synthesizer- Abstimmung, Sendersuchlauf,12 Programmspeicher, Verkehrsfunk- Decoder  für SDBK und Cockpit- Design Mittelwelle und UKW. 40 Watt Gesamt- Spitzenleistung  (4x 10 Watt bei 2 Latsprechern je Kanal). 4 Lautsprecherausgänge.

Mentioned in Funkschau (22/1986, S. 80 / Markt, Neuvorstellung)

Model page created by Josef Pilz. See "Data change" for further contributors.
