• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1985

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 164327

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage

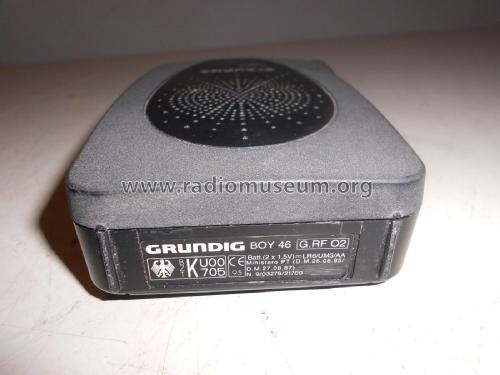

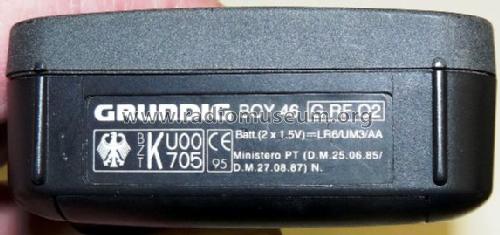

• Dry Batteries / 2 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Power out
• 0.25 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

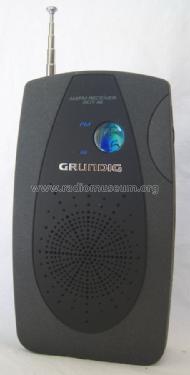

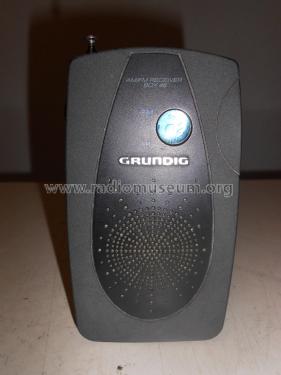

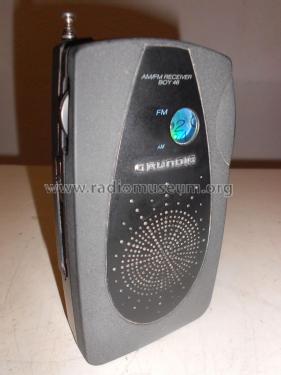

• Model: Boy 46 - Grundig Radio-Vertrieb, RVF,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 80 x 142 x 35 mm / 3.1 x 5.6 x 1.4 inch

• Notes

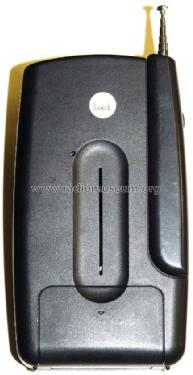

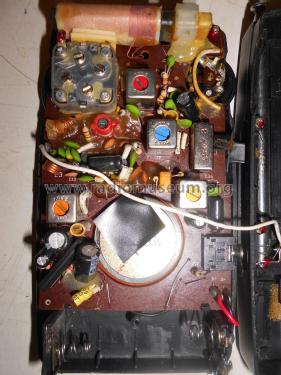

• AM/FM Receiver, Kopfhöreranschluß über 3,5 mm Klinkenbuchse, 2 integrierte Schaltkreise, Teleskopantenne 45 cm, Ferritantenne 5,5 cm

• Net weight (2.2 lb = 1 kg)
• 0.215 kg / 0 lb 7.6 oz (0.474 lb)

• Author
• Model page created by Museum Roggenhofer. See "Data change" for further contributors.
