For model City Boy 47, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1999 ? Category: Broadcast Receiver - or past WW2 Tuner
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details

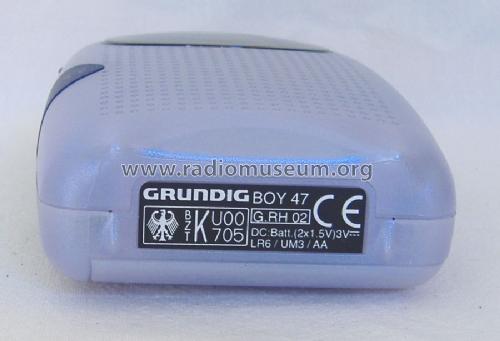

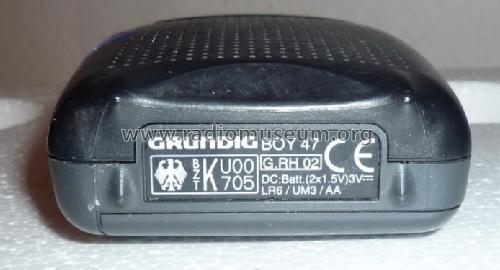

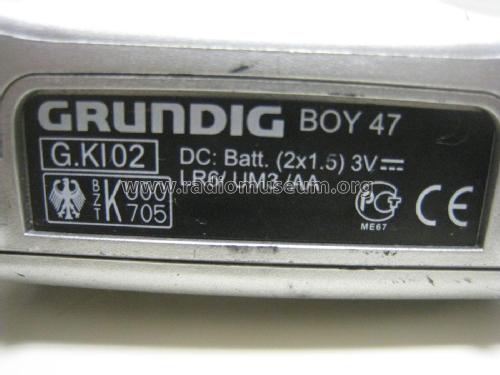

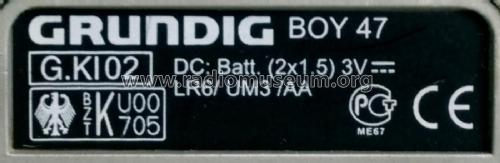

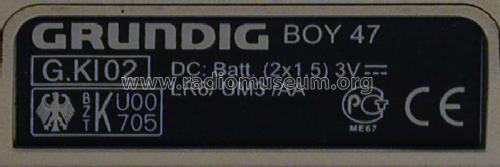

Power type and voltage Dry Batteries / 2 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: City Boy 47 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 80 x 140 x 35 mm / 3.1 x 5.5 x 1.4 inch
Notes

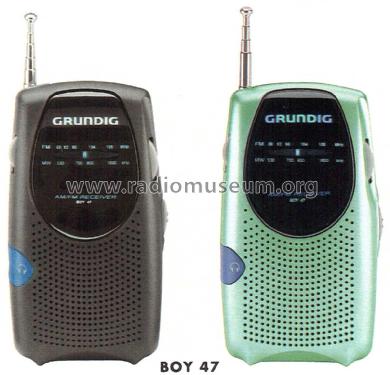

UKW+MW Miniradio, Kopfhörerbuchse 3,5mm, Farben dunkelgrau metallic & grün metallic.

Die Bezeichnung City Boy findet sich im Herstellerprospekt, jedoch nicht am Modell.

Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Mentioned in -- Original prospect or advert

Model page created by Andreas Reuther. See "Data change" for further contributors.
