Braunschweig

Braunschweig ; Grundig Radio- (ID = 1644607) Car Radio

Braunschweig ; Grundig Radio- (ID = 1644608) Car Radio
Braunschweig ; Grundig Radio- (ID = 1643222) Car Radio Braunschweig ; Grundig Radio- (ID = 1643223) Car Radio

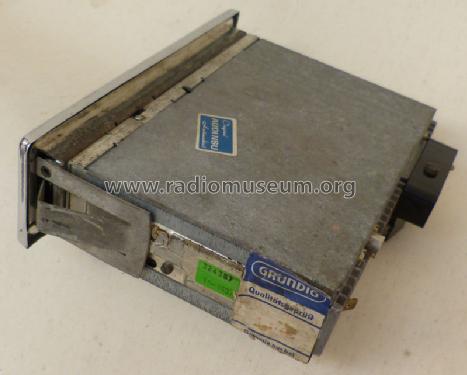

Braunschweig ; Grundig Radio- (ID = 1643224) Car Radio Braunschweig ; Grundig Radio- (ID = 1643225) Car Radio
Use red slider bar for more.
Braunschweig ; Grundig Radio- (ID = 1643222) Car Radio
Grundig Radio-: Braunschweig [Car Radio] ID = 1643222 800x519
Select picture or schematic to display from thumbnails on the right and click for download.
For model Braunschweig, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1970 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 12: BF185 BF184 BF240 BF241 BF240 BF241 BF241 BF241 BC108 BC181 AD161 AD162
Main principle Superheterodyne (common); 3 AF stage(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Braunschweig - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 175 x 42 x 150 mm / 6.9 x 1.7 x 5.9 inch
Notes

5 Festsendertasten: 1x LW, 2x MW, 2x UKW. Anschluss für 1 Lautsprecher.
Original AUDI NSU Austauschteil. Im Chassis ist noch ein VW-Zeichen eingeprägt

Net weight (2.2 lb = 1 kg) 1.260 kg / 2 lb 12.4 oz (2.775 lb)

Model page created by Erwin Rosenbaum. See "Data change" for further contributors.
