For model C100L, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1966–1968 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 12: AC161 AC170 AC170 AC171 AC117 AC117 BFY39 BFY39 AC117 AC117 AC117 AC122
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Dry Batteries / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: C100L - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 290 x 90 x 190 mm / 11.4 x 3.5 x 7.5 inch

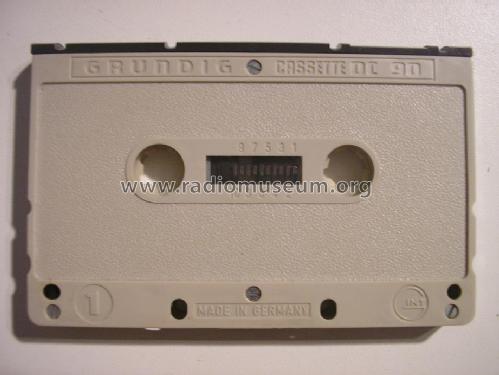

Notes Mono-Cassetten-Tonbandgerät für Cassetten-System "DC-International". Frequenzbereich: 40···10000 Hz. Netzbetrieb mit einschiebbarem Netzteil möglich.
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
External source of data erb
Source of data Handbuch VDRG 1966/1967
