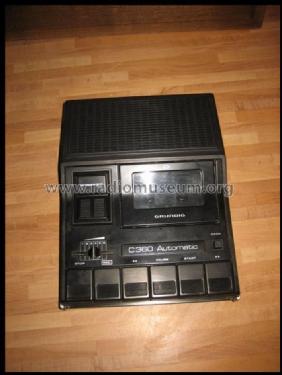

C360 Automatic; Grundig Radio- (ID = 978423) R-Player
Grundig Radio-: C360 Automatic [R-Player] ID = 978423 704x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model C360 Automatic, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1977/1978 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 8:
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 - 230 / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.2 W (unknown quality)
from Radiomuseum.org Model: C360 Automatic - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 210 x 82 x 276 mm / 8.3 x 3.2 x 10.9 inch
Notes Wie C350 Automatic aber ohne elektronische Motorregelung.
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Literature/Schematics (1) -- Original-techn. papers.
Literature/Schematics (2) - - Manufacturers Literature (Grundig Technische Informationen 5/1978)

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
