C4000 Automatic; Grundig Radio- (ID = 210862) Radio
Grundig Radio-: C4000 Automatic [Radio] ID = 210862 933x603
Select picture or schematic to display from thumbnails on the right and click for download.
For model C4000 Automatic, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1971–1974 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 21:
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Dry Batteries / D: 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: C4000 Automatic - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 350 x 200 x 100 mm / 13.8 x 7.9 x 3.9 inch
Notes Stromversorgung auch mit dryfit-PC-Akku 476 oder mit zusätzlichem Netzteil TN14B möglich.
Net weight (2.2 lb = 1 kg) 3.8 kg / 8 lb 5.9 oz (8.37 lb)
Collectors' prices
External source of data Erb
Source of data Handbuch VDRG 1971/1972


All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 6012 models, 5225 with images and 4065 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Grundig Radio-: C4000 Automatic
Threads: 1 | Posts: 1
Hits: 325     Replies: 0
grundig: Demontage
Ottmar Lauth
19.Sep.19
  1

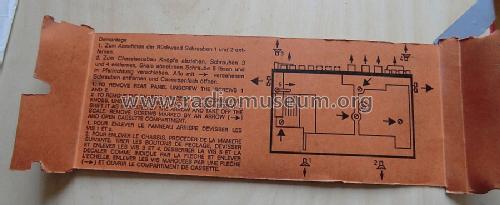

Die Demontage bei diesem Gerät ist sehr kompliziert,

Die 4 Drehknöpfe, die Skala, die Rückwand und der Tragbügel müssen entfernt werden,

Außerdem muß man 10 Schrauben lösen. .Notwendig ist es, sich zu merken, wo diese verschiedenen Schrauben jeweils hinkommen.
