• Year
  • 1976/1977
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 134819
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

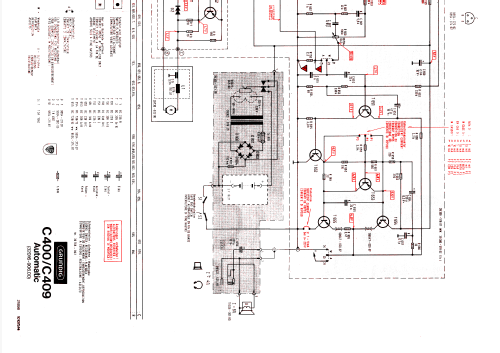

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 13
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 220-230 / 6×1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1 W (unknown quality)
  • from Radiomuseum.org
  • Model: C415 Automatic - Grundig Radio-Vertrieb, RVF,
  • Dimensions (WHD)
  • 210 x 80 x 280 mm / 8.3 x 3.1 x 11 inch
  • Notes
  • Grundig Cassetten-Recorder C415.
    Eingebautes Electret-Mikrofon; Übertragungsbereich: 80···10000 Hz.
  • Net weight (2.2 lb = 1 kg)
  • 2 kg / 4 lb 6.5 oz (4.405 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
