C4200 Automatic

C4200 Automatic; Grundig Radio- (ID = 75638) Radio

C4200 Automatic; Grundig Radio- (ID = 75639) Radio

C4200 Automatic; Grundig Radio- (ID = 75640) Radio

C4200 Automatic; Grundig Radio- (ID = 649830) Radio

C4200 Automatic; Grundig Radio- (ID = 649831) Radio

C4200 Automatic; Grundig Radio- (ID = 649832) Radio

C4200 Automatic; Grundig Radio- (ID = 649833) Radio

C4200 Automatic; Grundig Radio- (ID = 649834) Radio

C4200 Automatic; Grundig Radio- (ID = 649838) Radio

C4200 Automatic; Grundig Radio- (ID = 649839) Radio
C4200 Automatic; Grundig Radio- (ID = 126489) Radio C4200 Automatic; Grundig Radio- (ID = 75637) Radio
C4200 Automatic; Grundig Radio- (ID = 126490) Radio C4200 Automatic; Grundig Radio- (ID = 949431) Radio
C4200 Automatic; Grundig Radio- (ID = 949432) Radio C4200 Automatic; Grundig Radio- (ID = 949433) Radio
C4200 Automatic; Grundig Radio- (ID = 949434) Radio C4200 Automatic; Grundig Radio- (ID = 1073509) Radio
C4200 Automatic; Grundig Radio- (ID = 1073510) Radio C4200 Automatic; Grundig Radio- (ID = 1073511) Radio
Use red slider bar for more.

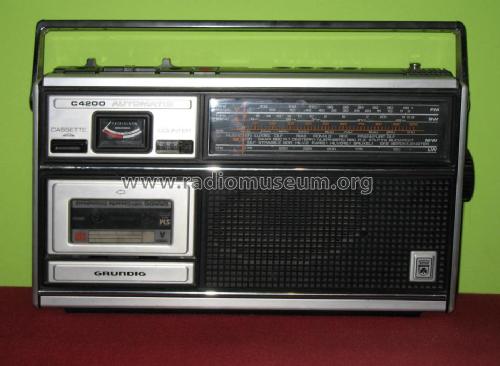

C4200 Automatic; Grundig Radio- (ID = 126489) Radio
Grundig Radio-: C4200 Automatic [Radio] ID = 126489 933x586
Select picture or schematic to display from thumbnails on the right and click for download.
For model C4200 Automatic, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1976–1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 21:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 110-127; 220-240 / 6×1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2 W (unknown quality)
from Radiomuseum.org Model: C4200 Automatic - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 380 x 220 x 100 mm / 15 x 8.7 x 3.9 inch
Notes

Ausgangsleistung bei Netzbetrieb: 3 W (Musik).

Das Gerät wurde, ebenso wie das Modell C 4150, auch in Großbritannien hergestellt.

Net weight (2.2 lb = 1 kg) 3.3 kg / 7 lb 4.3 oz (7.269 lb)
Price in first year of sale 450.00 DM
Source of data Handbuch VDRG 1977/1978
Mentioned in Funk-Technik (FT) (11/76 Seite 356)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.



All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 6057 models, 5282 with images and 4090 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
Grundig Radio-: C4200 Automatic
Threads: 1 | Posts: 1
Hits: 2388     Replies: 0
grundig: C4200 Automatic
Ottmar Lauth
02.Aug.13
  1

Offensichtlich gibt es mehrere Versionen dieses Modells. Bei meiner " C 4200 Automatic" ist die Vorderwand  ( abweichend von der hier eingestellten Serviceanleitung) mit 4 Schrauben befestigt.Außer den 3 dort genannten Schrauben " b" gibt es noch eine weitere, die durch ein Loch in der Druckplatte zu erreichen ist ( s. beigefügtes Foto.) .

Attachments


Grundig Radio-: C4200 Automatic
End of forum contributions about this model
