• Year
  • 1978
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 172953
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 120-127; 220-230 / 6 × 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1.2 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: C460 Automatic - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 210 x 82 x 276 mm / 8.3 x 3.2 x 10.9 inch
  • Notes
  • Wie C450 Automatic aber ohne Motorregelung.
    ICs: 1.
    Abschaltbares eingebautes Elektret-Mikrofon mit FET-Vorverstärker. Frequenzumfang: 60···10000 Hz. Einsetzbarer 9-V-Akku 4Dx2U, Ladeautomatik.
  • Net weight (2.2 lb = 1 kg)
  • 2.5 kg / 5 lb 8.1 oz (5.507 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Literature/Schematics (2)

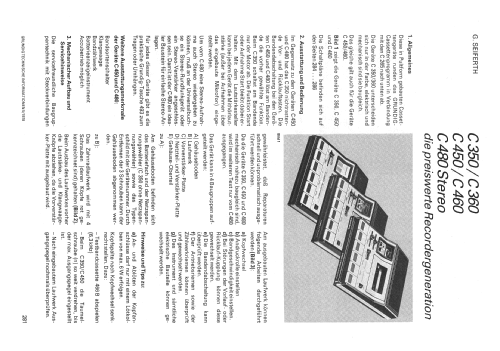

  • - - Manufacturers Literature (Grundig Technische Informationen 5/1978)
  • Author
  • Model page created by Wolfgang Bauer. See "Data change" for further contributors.
