Cassette Recorder CR105

Cassette Recorder CR105; Grundig Radio- (ID = 563964) R-Player Cassette Recorder CR105; Grundig Radio- (ID = 563958) R-Player
Cassette Recorder CR105; Grundig Radio- (ID = 563967) R-Player Cassette Recorder CR105; Grundig Radio- (ID = 563959) R-Player
Cassette Recorder CR105; Grundig Radio- (ID = 563961) R-Player Cassette Recorder CR105; Grundig Radio- (ID = 563962) R-Player
Cassette Recorder CR105; Grundig Radio- (ID = 563966) R-Player Cassette Recorder CR105; Grundig Radio- (ID = 837671) R-Player
Cassette Recorder CR105; Grundig Radio- (ID = 837672) R-Player Cassette Recorder CR105; Grundig Radio- (ID = 837673) R-Player
Use red slider bar for more.

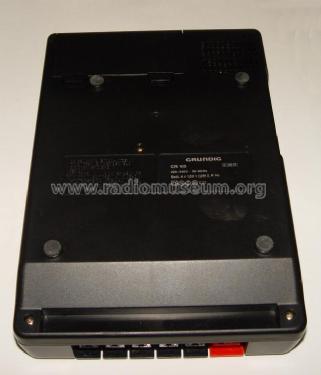

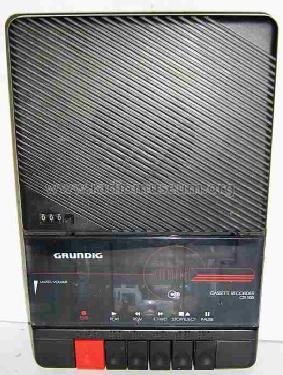

Cassette Recorder CR105; Grundig Radio- (ID = 563964) R-Player
Grundig Radio-: Cassette Recorder CR105 [R-Player] ID = 563964 930x651
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cassette Recorder CR105, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Sammlung

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1992 ?? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 4: 2SC945 2SC945 2SA105 2SC2021 TDA7231
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220-240 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch
Power out
from Radiomuseum.org Model: Cassette Recorder CR105 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 180 x 60 x 260 mm / 7.1 x 2.4 x 10.2 inch
Notes Cassette Recorder CR105, Remote und Kopfhörer-Anschluß, Ext.-Audioeingang, eingebautes Micro, Zählwerk. Bedientasten zusätzlich mit Blindenschrift beschriftet.
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Source of data - - Data from my own collection

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
