CB210 HIFI-Stereo

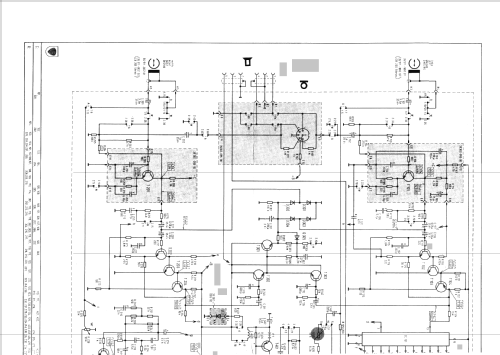

CB210 HIFI-Stereo; Grundig Radio- (ID = 754954) R-Player

CB210 HIFI-Stereo; Grundig Radio- (ID = 754955) R-Player
Use red slider bar for more.
CB210 HIFI-Stereo; Grundig Radio- (ID = 754954) R-Player
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1977 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 19:
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: CB210 HIFI-Stereo - Grundig Radio-Vertrieb, RVF,
Material Various materials
Shape Chassis only or for «building in»
Notes 2 IC: MC14052 B CP, TCA910
Einbau-Kassettenrecorder in verschiedene Kompactanlagen.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
