CB-Funk-Heimstation CBH3000

CB-Funk-Heimstation CBH3000; Grundig Radio- (ID = 462185) Citizen

CB-Funk-Heimstation CBH3000; Grundig Radio- (ID = 462186) Citizen

CB-Funk-Heimstation CBH3000; Grundig Radio- (ID = 462187) Citizen

CB-Funk-Heimstation CBH3000; Grundig Radio- (ID = 462188) Citizen

CB-Funk-Heimstation CBH3000; Grundig Radio- (ID = 462189) Citizen

CB-Funk-Heimstation CBH3000; Grundig Radio- (ID = 462190) Citizen

CB-Funk-Heimstation CBH3000; Grundig Radio- (ID = 462191) Citizen

CB-Funk-Heimstation CBH3000; Grundig Radio- (ID = 462192) Citizen

CB-Funk-Heimstation CBH3000; Grundig Radio- (ID = 782243) Citizen

CB-Funk-Heimstation CBH3000; Grundig Radio- (ID = 782245) Citizen
CB-Funk-Heimstation CBH3000; Grundig Radio- (ID = 109875) Citizen CB-Funk-Heimstation CBH3000; Grundig Radio- (ID = 109877) Citizen
CB-Funk-Heimstation CBH3000; Grundig Radio- (ID = 781964) Citizen CB-Funk-Heimstation CBH3000; Grundig Radio- (ID = 781984) Citizen
Use red slider bar for more.
CB-Funk-Heimstation CBH3000; Grundig Radio- (ID = 109875) Citizen
Grundig Radio-: CB-Funk-Heimstation CBH3000 [Citizen] ID = 109875 904x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model CB-Funk-Heimstation CBH3000, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1978 Category: Citizen Band Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: CB-Funk-Heimstation CBH3000 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, slant panel.
Dimensions (WHD) 330 x 140 x 330 mm / 13 x 5.5 x 13 inch

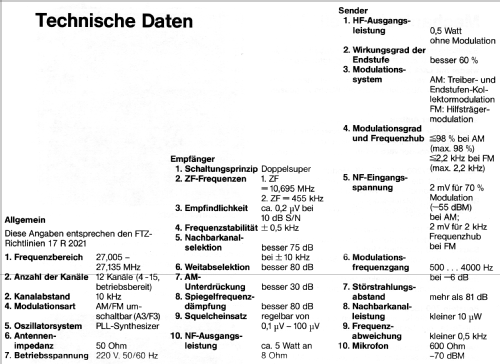

Notes Frequenzbereich 27,005-27,135 MHz, 12 Kanäle, Modulationsart AM/FM, Sender: HF-Ausgangsleistung 0,5 Watt ohne Modulation, Empfänger: NF-Ausgangsleistung ca. 5 Watt an 8 Ohm.
Net weight (2.2 lb = 1 kg) 5.2 kg / 11 lb 7.3 oz (11.454 lb)
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) Funkschau (16/1978 S. 761)

Model page created by Peter Böhm. See "Data change" for further contributors.
