For model CB-Funkmessplatz CB6, Grundig (Radio-Vertrieb, RVF, Radiowerke):
aus ebay: 201109094447 Anbieter: 'levoluzione' (beim abgebildeten Gerät ist laut Anbieter der Frequenzzähler defekt)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1978/1979 Category: Service- or Lab Equipment
Valves / Tubes 1: 140AYB31 or 140BZB31
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: CB-Funkmessplatz CB6 - Grundig Radio-Vertrieb, RVF,
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 425 x 200 x 250 mm / 16.7 x 7.9 x 9.8 inch
Notes

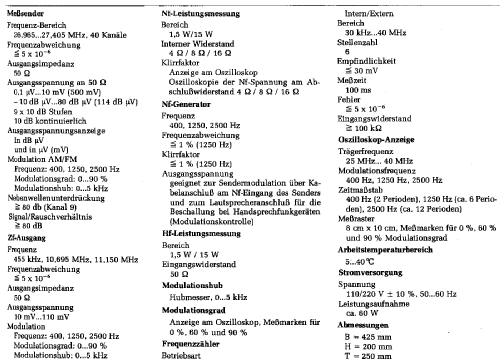

CB-Funkmessplatz bestehend aus HF-Signalgenerator 26,965...27,405 MHz,10 kHz Kanal-Raster, Abdeckung der 40 CB-Funkkanäle (BRD), AM und FM; ZF-Signalgenerator: 10,695 MHz, 11,150 MHz und 455 kHz; NF-Signalgenerator: 400 Hz, 1250 Hz, 2500 Hz; HF-Wattmeter 1,5/15 W, Eingangsimpedanz 50 Ω; NF-Wattmeter 1,5/15 W, Eingangsimpedanz 4/8/16 Ω; Frequenzmesser 30 kHz...40 MHz; Oszilloskop und Hubmesser.



Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 2'923.00 DM
Mentioned in Funkschau (6/1979, S. 307 - 310)

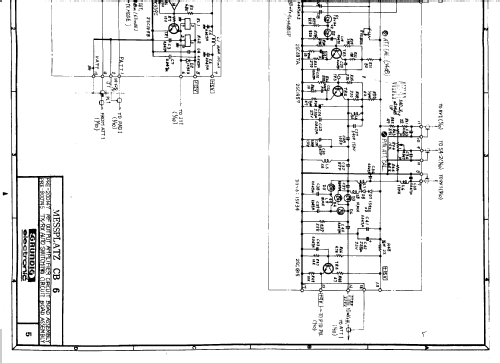

Literature/Schematics (1) - - Manufacturers Literature (Grundig Technische Informationen 1/1979)

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
