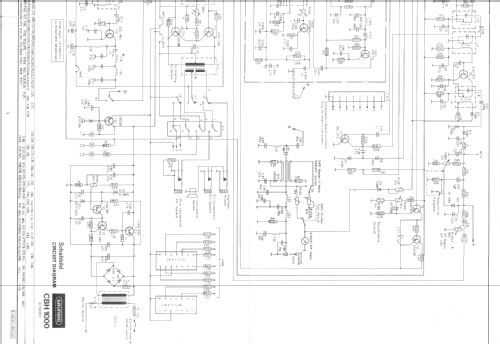

Select picture or schematic to display from thumbnails on the right and click for download.
For model CB-Funk-Heimstation CBH1000, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1977/1978 Category: Citizen Band Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion; ZF/IF 10695/455 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 5 W (unknown quality)
from Radiomuseum.org Model: CB-Funk-Heimstation CBH1000 - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 325 x 115 x 245 mm / 12.8 x 4.5 x 9.6 inch
Notes 12-Kanal-Heimstation (Kanal 4-15; 27,005-27,135 MHz) mit 0,5 W HF-Ausgangsleistung in AM. PLL-Frequenzsynthesizer.
Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)
Price in first year of sale 485.00 DM
Collectors' prices
Source of data Handbuch VDRG 1977/1978

Model page created by a member from A. See "Data change" for further contributors.
