• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 2007 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 318440

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

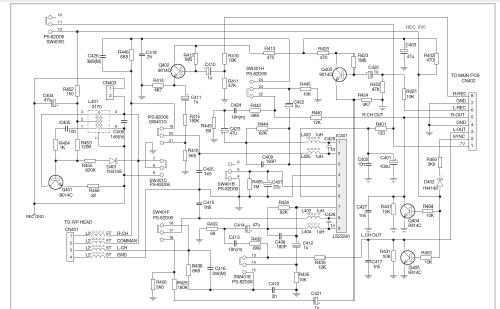

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Line / Batteries (any type) / 50 to 60Hz, 230 / C: 4 x 1.5 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: CD Radio Recorder RRCD 2700 MP3 - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

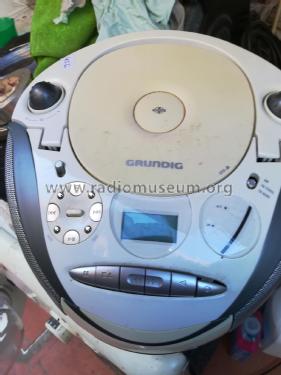

• Grundig RRCD 2700 MP3 is a Radio CD Cassette portable system.

  - CD player MP3
  - Cassette Recorder
  - Tuner FM / AM

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Author
• Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.
