• Year
  • 1985
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 124245
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 115/220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org

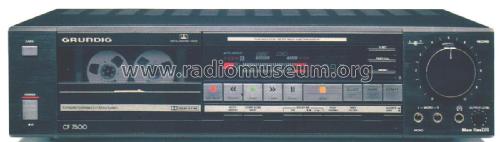

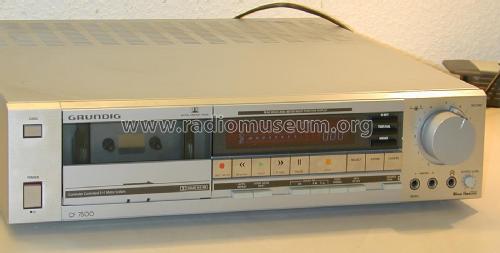

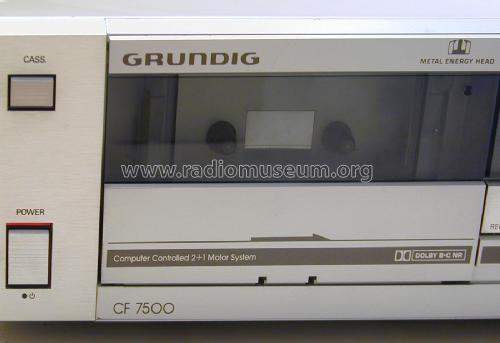

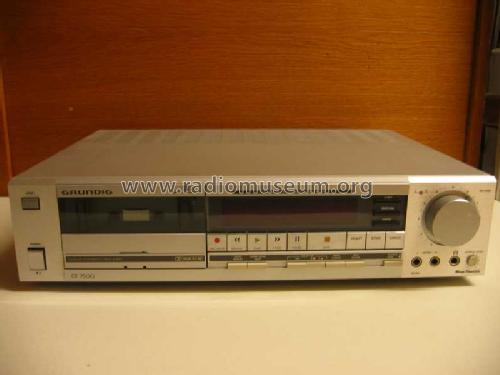

  • Model: CF 7500 - Grundig Radio-Vertrieb, RVF,
  • Dimensions (WHD)
  • 450 x 110 x 330 mm / 17.7 x 4.3 x 13 inch
  • Notes
  • Laufwerk mit elektronisch geregeltem Tonwellenmotor, Wickelmotor und Servomotor für Kopfschlitten. Laufwerk: Microcomputer gesteuert.
  • Net weight (2.2 lb = 1 kg)
  • 6.6 kg / 14 lb 8.6 oz (14.537 lb)
  • Price in first year of sale
  • 900.00 DM
  • Author
  • Model page created by Werner Ehehalt. See "Data change" for further contributors.
