Color 5000

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1971/1972

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 291573

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture

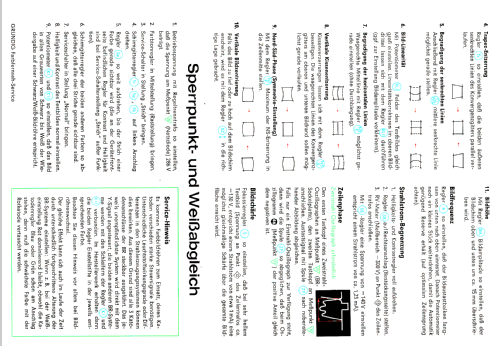

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• PL95 PCF802 PL509 PL509 PL508 PY500A GY501 PY88 A66-140X

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220/320 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Color 5000 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 760 x 540 x 460 mm / 29.9 x 21.3 x 18.1 inch

• Notes

• 66- cm Farbfernseh- Tischgerät mit VHF/UHF Allbereichtuner mit Dioden- Abstimmung, 9 Drucktasten 7 VHF/UHF Programmtasten,Ein/Aus. Auf Wunsch Fernbdienung VII Color DM 48,50

• Net weight (2.2 lb = 1 kg)
• 44 kg / 96 lb 14.7 oz (96.916 lb)

• Literature/Schematics (2)
• -- Original-techn. papers.

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
