Video Cassetten Recorder BK-2500 Color

Video Cassetten Recorder BK-2500 Color; Grundig Radio- (ID = 1033220) R-Player Video Cassetten Recorder BK-2500 Color; Grundig Radio- (ID = 224070) R-Player
Video Cassetten Recorder BK-2500 Color; Grundig Radio- (ID = 224071) R-Player Video Cassetten Recorder BK-2500 Color; Grundig Radio- (ID = 224069) R-Player
Video Cassetten Recorder BK-2500 Color; Grundig Radio- (ID = 50459) R-Player Video Cassetten Recorder BK-2500 Color; Grundig Radio- (ID = 50460) R-Player
Video Cassetten Recorder BK-2500 Color; Grundig Radio- (ID = 50748) R-Player Video Cassetten Recorder BK-2500 Color; Grundig Radio- (ID = 50749) R-Player
Video Cassetten Recorder BK-2500 Color; Grundig Radio- (ID = 52249) R-Player Video Cassetten Recorder BK-2500 Color; Grundig Radio- (ID = 52250) R-Player
Use red slider bar for more.
Video Cassetten Recorder BK-2500 Color; Grundig Radio- (ID = 1033220) R-Player
Grundig Radio-: Video Cassetten Recorder BK-2500 Color [R-Player] ID = 1033220 933x410
Select picture or schematic to display from thumbnails on the right and click for download.
For model Video Cassetten Recorder BK-2500 Color, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Ausgestellt im Rundfunkmuseum der Stadt Fürth.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1975–1977 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Video-Taperecorder/-Player
Power type and voltage Alternating Current supply (AC) / 220-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Video Cassetten Recorder BK-2500 Color - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 640 x 130 x 310 mm / 25.2 x 5.1 x 12.2 inch
Notes Grundig Video-Cassetten-Recorder BK2500 Color.

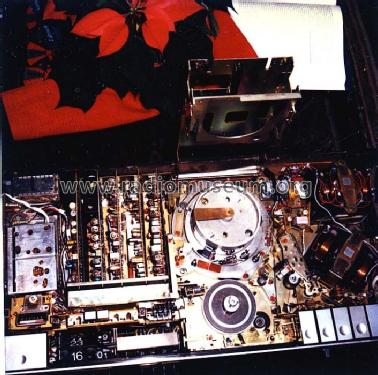

Holzgehäuse mit Kunststoffblenden und aluminiumeloxierten Zargen. Stahlchassis im Innern elastisch aufgehängt, um die Schwingungen der zwei Papst-Motoren (Kurzschlußläufer) zu dämpfen.
Net weight (2.2 lb = 1 kg) 17 kg / 37 lb 7.1 oz (37.445 lb)
Price in first year of sale 3'900.00 DM
Source of data Handbuch VDRG 1975/1976
Mentioned in Handbuch VDRG 1976/1977
