Color electronic S 905

Color electronic S 905; Grundig Radio- (ID = 2071761) Television

Color electronic S 905; Grundig Radio- (ID = 2071762) Television

Color electronic S 905; Grundig Radio- (ID = 2071763) Television

Color electronic S 905; Grundig Radio- (ID = 2071764) Television

Color electronic S 905; Grundig Radio- (ID = 2071765) Television

Color electronic S 905; Grundig Radio- (ID = 2071766) Television

Color electronic S 905; Grundig Radio- (ID = 2071767) Television

Color electronic S 905; Grundig Radio- (ID = 2071768) Television

Color electronic S 905; Grundig Radio- (ID = 2071769) Television

Color electronic S 905; Grundig Radio- (ID = 2071770) Television
Color electronic S 905; Grundig Radio- (ID = 2071507) Television Color electronic S 905; Grundig Radio- (ID = 2071098) Television
Color electronic S 905; Grundig Radio- (ID = 2071508) Television
Use red slider bar for more.
Color electronic S 905; Grundig Radio- (ID = 2071507) Television
Grundig Radio-: Color electronic S 905 [Television] ID = 2071507 990x1043
Select picture or schematic to display from thumbnails on the right and click for download.
For model Color electronic S 905, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Bild aus Grundig Revue 1969

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1969/1970 Category: Television Receiver (TV) or Monitor
Valves / Tubes 5: PCL805 PCF802 PL509 PY500A A56-120X
Semiconductors (the count is only for transistors) 43:
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Color electronic S 905 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 777 x 823 x 574 mm / 30.6 x 32.4 x 22.6 inch
Notes

Grundig S 905 Color electronic,
VHF/UHF Allbereich Tuner mit Dioden-Abstimmung,
8 Drucktasten,  7 VHF/UHF Programmtasten und 4 Schieberegler.
Fernregler VII Color 44,00 DM als Zubehör.
Gehäuse Ausführung Nussbaum, Rüster oder Teak.

Price in first year of sale 2'298.00 DM

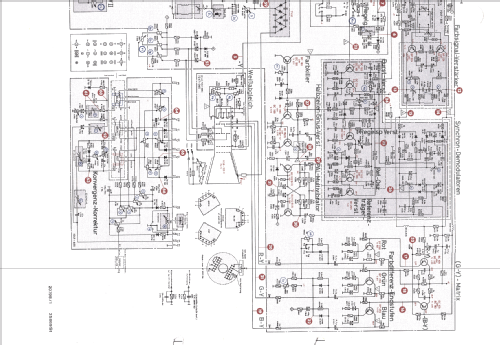

Literature/Schematics (2) -- Original-techn. papers.

Model page created by Josef Pilz. See "Data change" for further contributors.
