• Year
  • 1980 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 229210
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

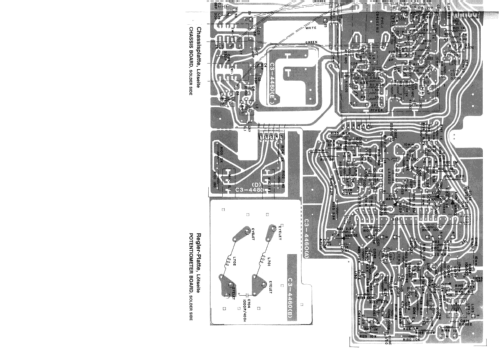

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Record Player + Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Various materials
  • from Radiomuseum.org

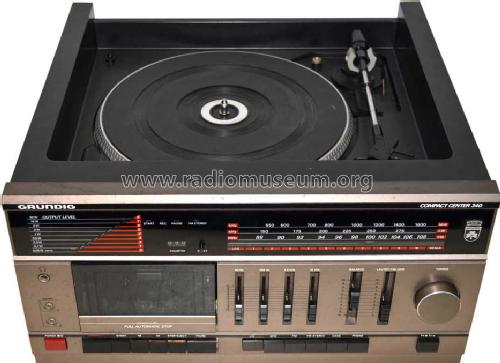

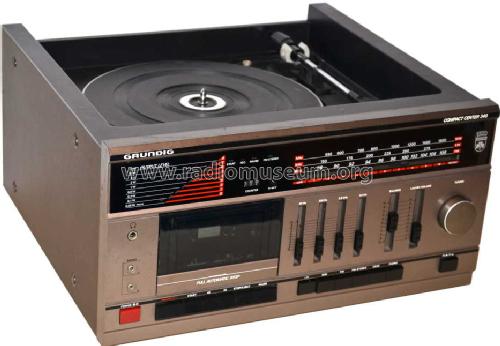

  • Model: Compact Center CC340 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 421 x 220 x 405 mm / 16.6 x 8.7 x 15.9 inch
  • Net weight (2.2 lb = 1 kg)
  • 7 kg / 15 lb 6.7 oz (15.419 lb)
  • Author
  • Model page created by Karlheinz Gützlaff. See "Data change" for further contributors.
