Diagnose-Adapter 29301-039.01

Diagnose-Adapter 29301-039.01; Grundig Radio- (ID = 348597) Equipment

Diagnose-Adapter 29301-039.01; Grundig Radio- (ID = 348598) Equipment

Diagnose-Adapter 29301-039.01; Grundig Radio- (ID = 444400) Equipment

Diagnose-Adapter 29301-039.01; Grundig Radio- (ID = 444401) Equipment

Diagnose-Adapter 29301-039.01; Grundig Radio- (ID = 2068366) Equipment

Diagnose-Adapter 29301-039.01; Grundig Radio- (ID = 2068367) Equipment

Diagnose-Adapter 29301-039.01; Grundig Radio- (ID = 2068369) Equipment

Diagnose-Adapter 29301-039.01; Grundig Radio- (ID = 2068370) Equipment
Diagnose-Adapter 29301-039.01; Grundig Radio- (ID = 1951842) Equipment Diagnose-Adapter 29301-039.01; Grundig Radio- (ID = 1951845) Equipment
Diagnose-Adapter 29301-039.01; Grundig Radio- (ID = 348596) Equipment Diagnose-Adapter 29301-039.01; Grundig Radio- (ID = 443413) Equipment
Diagnose-Adapter 29301-039.01; Grundig Radio- (ID = 443414) Equipment Diagnose-Adapter 29301-039.01; Grundig Radio- (ID = 443415) Equipment
Diagnose-Adapter 29301-039.01; Grundig Radio- (ID = 2068371) Equipment
Use red slider bar for more.
Diagnose-Adapter 29301-039.01; Grundig Radio- (ID = 1951842) Equipment

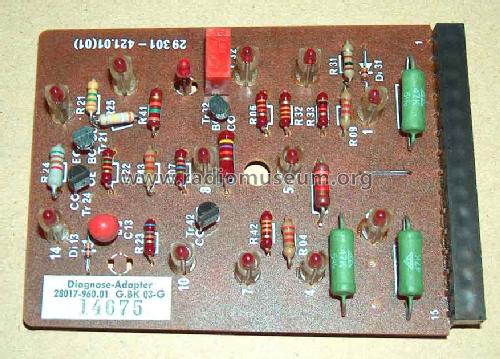

Grundig Radio-: Diagnose-Adapter 29301-039.01 [Equipment] ID = 1951842 1310x1400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Diagnose-Adapter 29301-039.01, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Gerät liegt in der Klarsicht-Verpackung im Rundfunkmuseum der Stadt Fürth.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1974 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 4: BC308 BC238 BC238 BC238
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Diagnose-Adapter 29301-039.01 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Notes Diagnose-Adapter zur Fehlersuche an Grundig Thyristor-TV-Chassis wie z.B. Modelle: 2210, 2252, 5012, 4400. Anzeige der Funktionen mittels LEDs.
Mentioned in Grundig Service Technisches Jahrbuch 1991

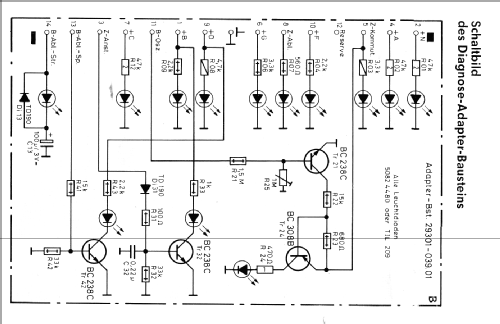

Literature/Schematics (1) Grundig Technische Informationen 4/1974
