Digital-Radio Music 65 DAB+

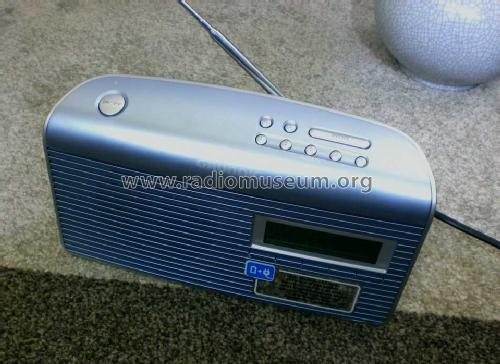

Digital-Radio Music 65 DAB+; Grundig Radio- (ID = 1982871) DIG/SAT

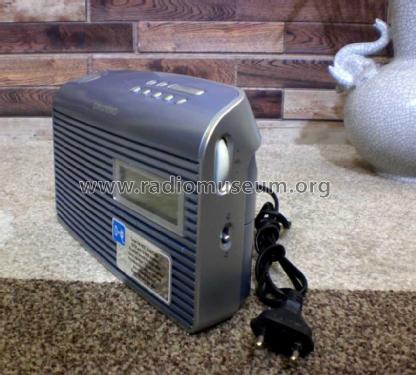

Digital-Radio Music 65 DAB+; Grundig Radio- (ID = 1982868) DIG/SAT Digital-Radio Music 65 DAB+; Grundig Radio- (ID = 1982869) DIG/SAT
Digital-Radio Music 65 DAB+; Grundig Radio- (ID = 1982870) DIG/SAT
Use red slider bar for more.
Digital-Radio Music 65 DAB+; Grundig Radio- (ID = 1982868) DIG/SAT
Grundig Radio-: Digital-Radio Music 65 DAB+ [DIG/SAT] ID = 1982868 1400x1474
Select picture or schematic to display from thumbnails on the right and click for download.
For model Digital-Radio Music 65 DAB+, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 2014 Category: Digital terrestrial, Internet and SAT receiver (also analogue)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle DSP, Digital Signal Processor
Wave bands DAB and FM, perhaps with Streaming [DABFM]
Details
Power type and voltage Line / Batteries (any type) / 230 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 0.75 W (undistorted)
from Radiomuseum.org Model: Digital-Radio Music 65 DAB+ - Grundig Radio-Vertrieb, RVF,
Material Plastics (no bakelite or catalin)
Dimensions (WHD) 250 x 140 x 70 mm / 9.8 x 5.5 x 2.8 inch
Notes

Digital-Radio für DAB/DAB+ und UKW. PLL-Frequenz-Synthesizer-Abstimmung, RDS, Sendersuchlauf, LC-Display, Weckfunktion. Lautstärke- und Klangfarben-Einsteller. Ohrhörerbuchse (mono). Je 10 Senderspeicher für DAB und FM mittels 5 Tasten. Netzteil integriert, Batterien 4x R14.

Hergestellt wahrscheinlich in Polen.

Net weight (2.2 lb = 1 kg) 0.770 kg / 1 lb 11.1 oz (1.696 lb)
Price in first year of sale 75.00 €
Mentioned in -- Original-techn. papers.

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
