- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1997
- Category
- Digital terrestrial, Internet and SAT receiver (also analogue)
- Radiomuseum.org ID
- 295754
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
PHoto Catalogo Grundig
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- SAT-IF
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org

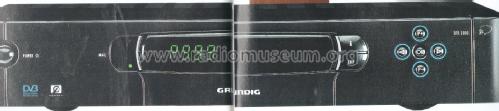

- Model: DTR 2000 - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 380 x 70 x 329 mm / 15 x 2.8 x 13 inch
- Notes
-
Digital Tv Receiver, switching signals, V, kHz 14/18, 0/22 DISEqC MHz 1,0 frequency range MHz 950-2150, in level dB microV 30/80, modulation QPSK Bitstream Ms/sec 720X576/520, Audio kHz MPEG 2 layer 1X2, 32/44, 1/48, OSD color 16, CPU Bit 32, memory 2 MBit Ram, 2 MBit Flash, 16 MBit descodification MPEG 2, Software level high, interface serie RS232 , 3 Euro AV, S-VHS, 2X audio / 1X video (cinch) 1X multiswitch cinch) card reader, 7 segments display, modulation AF (PLL) remote control.
- Mentioned in
- Catalog Grundig 1997, Model Page 10
- Author
- Model page created by Manuel Albano Neves. See "Data change" for further contributors.
