Elite-Boy Automatic 208

Elite-Boy Automatic 208; Grundig Radio- (ID = 66567) Radio

Elite-Boy Automatic 208; Grundig Radio- (ID = 66568) Radio

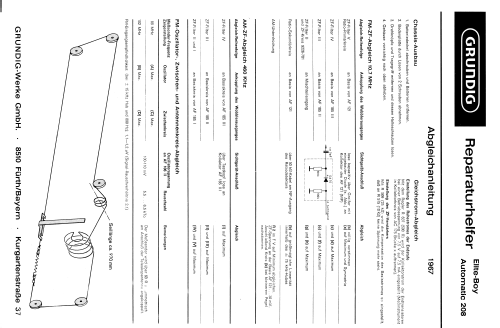

Elite-Boy Automatic 208; Grundig Radio- (ID = 66571) Radio

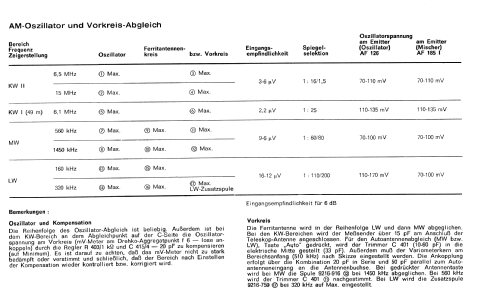

Elite-Boy Automatic 208; Grundig Radio- (ID = 66572) Radio

Elite-Boy Automatic 208; Grundig Radio- (ID = 66573) Radio

Elite-Boy Automatic 208; Grundig Radio- (ID = 66569) Radio

Elite-Boy Automatic 208; Grundig Radio- (ID = 66570) Radio
Elite-Boy Automatic 208; Grundig Radio- (ID = 441677) Radio
Use red slider bar for more.
Elite-Boy Automatic 208; Grundig Radio- (ID = 441677) Radio
Grundig Radio-: Elite-Boy Automatic 208 [Radio] ID = 441677 469x383
Select picture or schematic to display from thumbnails on the right and click for download.
For model Elite-Boy Automatic 208, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1968/1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: AF106 AF106 AF126 AF185 AF185 AF185 AF121 BC108 BC108 AD156 AD156
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Dry Batteries / 5 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Elite-Boy Automatic 208 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 190 x 90 mm / 12.6 x 7.5 x 3.5 inch
Notes Autobetrieb über Autohalterung aus 6-V- oder 12-V-Autobatterie, dann Ausgangsleistung = 5 W. Netzbetrieb mit zusätzlichem Netzteil möglich.
Net weight (2.2 lb = 1 kg) 3.6 kg / 7 lb 14.9 oz (7.93 lb)
Source of data Handbuch VDRG 1968/1969 / Radiokatalog Band 1, Ernst Erb
