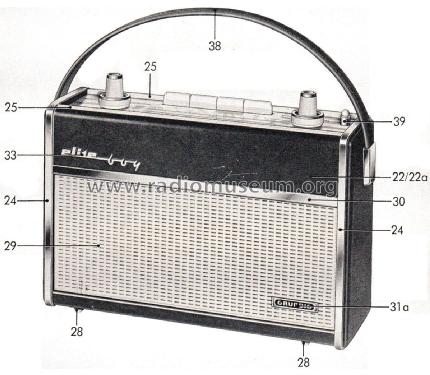

Elite-Boy 203Ea

Elite-Boy 203Ea; Grundig Radio- (ID = 644142) Radio

Elite-Boy 203Ea; Grundig Radio- (ID = 644143) Radio
Use red slider bar for more.
Elite-Boy 203Ea; Grundig Radio- (ID = 644142) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1964–1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: AF106 AF125 AF126 AF126 AF126 AF126 OC70 AC125 AC126 AC128 AC128
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6×1,5; 2×4,5; 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Elite-Boy 203Ea - Grundig Radio-Vertrieb, RVF,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 180 x 90 mm / 11 x 7.1 x 3.5 inch
Notes Netzbetrieb mit nachträglich einsetzbarem Netzteil TN9 (52,- DM) möglich.
Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)
Price in first year of sale 410.00 DM
Source of data Handbuch VDRG 1964/1965 / Radiokatalog Band 1, Ernst Erb
Mentioned in Handbuch VDRG 1965/1966
