Elite-Boy L203

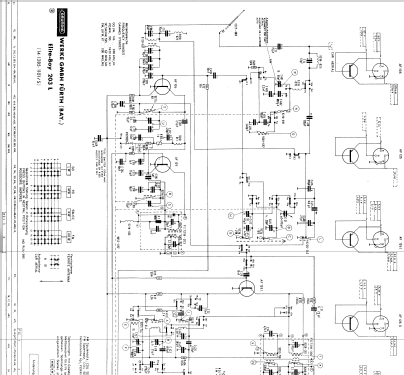

Elite-Boy L203; Grundig Radio- (ID = 566852) Radio

Elite-Boy L203; Grundig Radio- (ID = 566853) Radio

Elite-Boy L203; Grundig Radio- (ID = 566857) Radio

Elite-Boy L203; Grundig Radio- (ID = 566860) Radio
Elite-Boy L203; Grundig Radio- (ID = 499526) Radio Elite-Boy L203; Grundig Radio- (ID = 807246) Radio
Elite-Boy L203; Grundig Radio- (ID = 499465) Radio Elite-Boy L203; Grundig Radio- (ID = 499534) Radio
Elite-Boy L203; Grundig Radio- (ID = 453777) Radio Elite-Boy L203; Grundig Radio- (ID = 499466) Radio
Elite-Boy L203; Grundig Radio- (ID = 499527) Radio Elite-Boy L203; Grundig Radio- (ID = 499529) Radio
Elite-Boy L203; Grundig Radio- (ID = 908959) Radio Elite-Boy L203; Grundig Radio- (ID = 908960) Radio
Use red slider bar for more.
Elite-Boy L203; Grundig Radio- (ID = 499526) Radio
Grundig Radio-: Elite-Boy L203 [Radio] ID = 499526 859x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Elite-Boy L203, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1963–1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF106 AF125 AF126 AF126 AF126 AC126 AC125 AC128 AC128
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 2 × 4,5; 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Elite-Boy L203 - Grundig Radio-Vertrieb, RVF,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 180 x 90 mm / 11 x 7.1 x 3.5 inch
Notes Netzbetrieb mit nachträglich einsetzbarem Netzteil TN9 (52,- DM) möglich.
Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)
Price in first year of sale 312.00 DM
Collectors' prices
Source of data Handbuch VDRG 1963/1964 / Radiokatalog Band 1, Ernst Erb
Mentioned in Handbuch RFP 1963
