Export-Boy 206

Export-Boy 206; Grundig Radio- (ID = 82044) Radio

Export-Boy 206; Grundig Radio- (ID = 82045) Radio

Export-Boy 206; Grundig Radio- (ID = 82046) Radio

Export-Boy 206; Grundig Radio- (ID = 82047) Radio
Export-Boy 206; Grundig Radio- (ID = 2455718) Radio Export-Boy 206; Grundig Radio- (ID = 2455716) Radio
Export-Boy 206; Grundig Radio- (ID = 1714207) Radio Export-Boy 206; Grundig Radio- (ID = 445491) Radio

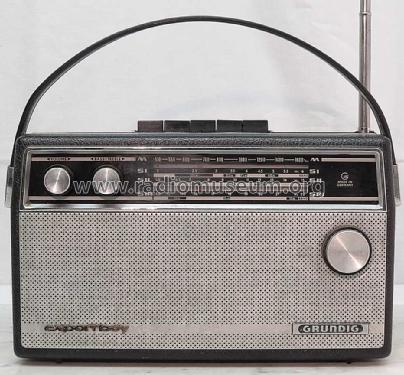

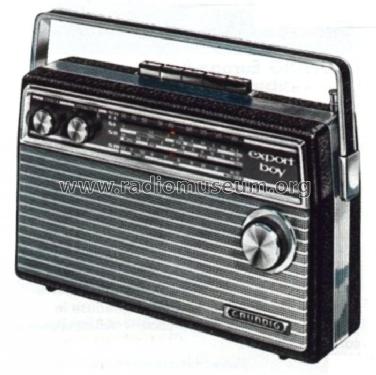

Export-Boy 206; Grundig Radio- (ID = 475793) Radio Export-Boy 206; Grundig Radio- (ID = 1714208) Radio
Export-Boy 206; Grundig Radio- (ID = 1714209) Radio Export-Boy 206; Grundig Radio- (ID = 1714213) Radio
Export-Boy 206; Grundig Radio- (ID = 1714216) Radio Export-Boy 206; Grundig Radio- (ID = 1714222) Radio
Use red slider bar for more.
Export-Boy 206; Grundig Radio- (ID = 2455718) Radio
Grundig Radio-: Export-Boy 206 [Radio] ID = 2455718 1024x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Export-Boy 206, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1965–1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF121 AF125 AF127 AF127 OC304 OC305 OC305 OC305 AC117 AC175
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Dry Batteries / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Export-Boy 206 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 170 x 80 mm / 11 x 6.7 x 3.1 inch
Notes Netzbetrieb aus einsetzbarem oder extern anschließbarem Netzteil möglich.
Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
Source of data Handbuch VDRG 1965/1966 / Radiokatalog Band 1, Ernst Erb
Mentioned in Handbuch VDRG 1966/1967
