Fine Arts HiFi-Receiver R2

Grundig (Radio-Vertrieb, RVF, Radiowerke)

Data
Forum
Pictures
Collections

  • Year
  • 1993 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 228497
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

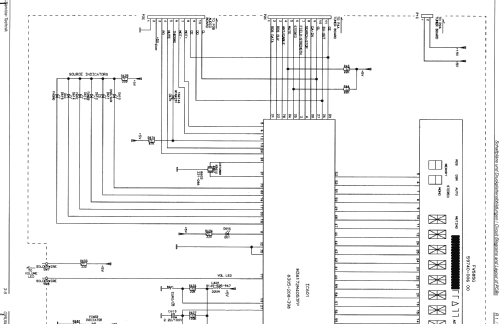

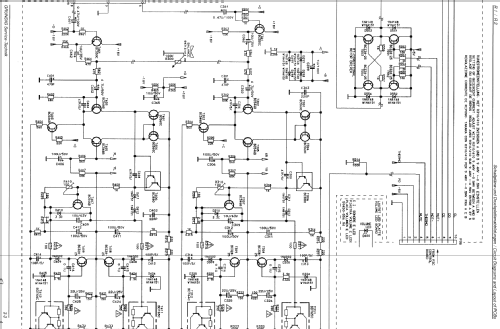

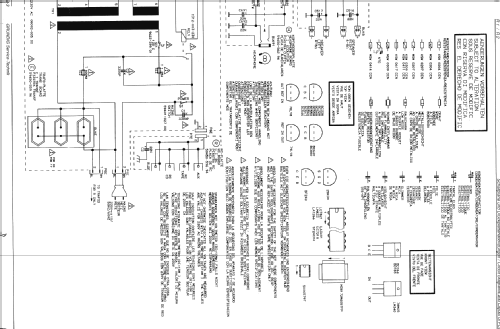

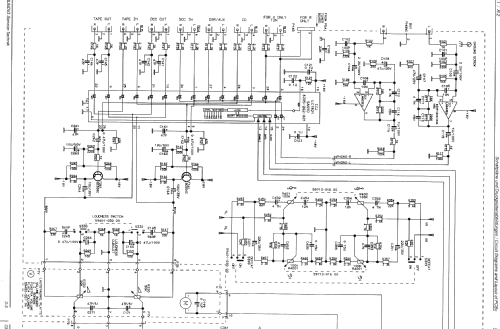

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 100 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Fine Arts HiFi-Receiver R2 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 435 x 125 x 300 mm / 17.1 x 4.9 x 11.8 inch
  • Notes

  • Fine Arts  HiFi-Receiver mit Stereo-Amplifier R2, Ausgangsleistung 2 x 100/50 Watt Musik-/Sinus an 4Ω, Fernbedienung, Anschlüsse für Tuner/Tape/DCC/DSR/AUX/CD/ und Phono, 59 Festsenderspeicher, RDS-Radiodext, Gehäuse Schwarz

  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by Karlheinz Fischer. See "Data change" for further contributors.
