• Year
  • 1996 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 230252
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

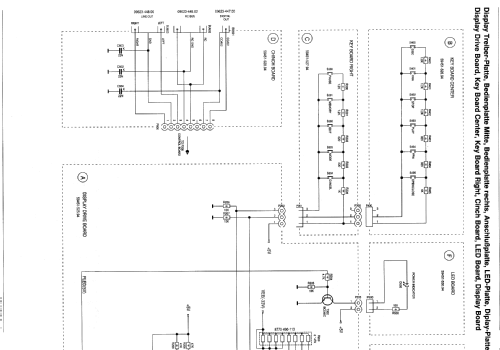

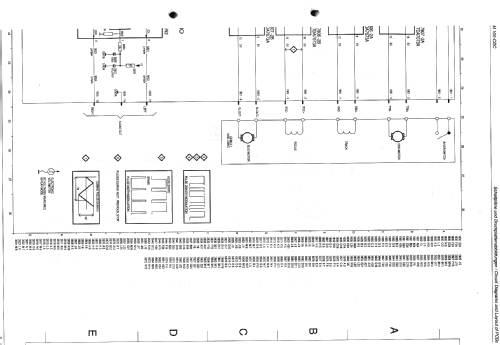

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Fine Arts M 100-CDC - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 270 x 95 x 340 mm / 10.6 x 3.7 x 13.4 inch
  • Notes
  • CD Wechsler mit Ferndedienung.

  • Net weight (2.2 lb = 1 kg)
  • 3.8 kg / 8 lb 5.9 oz (8.37 lb)
  • Mentioned in
  • Grundig Service Unterlagen
  • Author
  • Model page created by Josef Pilz. See "Data change" for further contributors.
