TK2400 FM Automatic 1968

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1968/1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27516

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

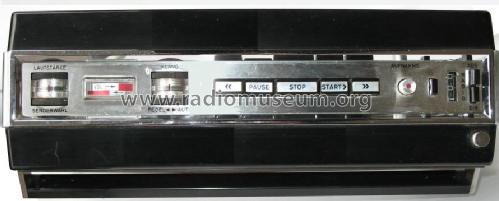

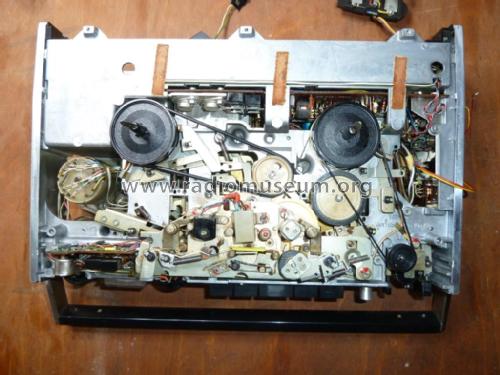

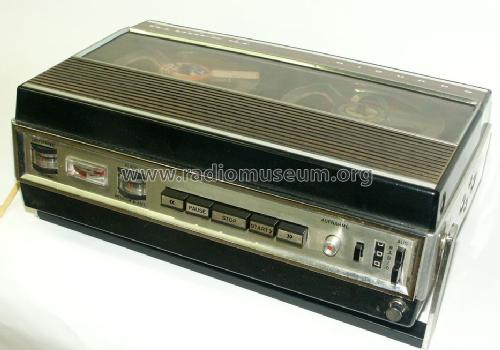

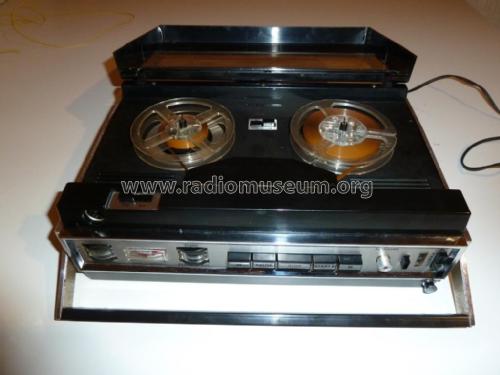

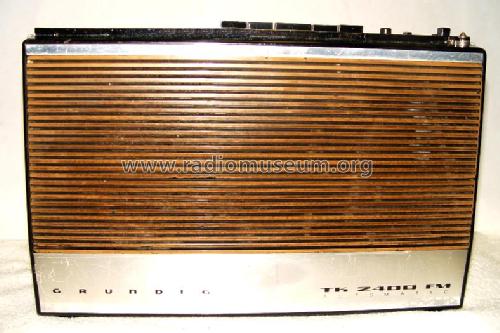

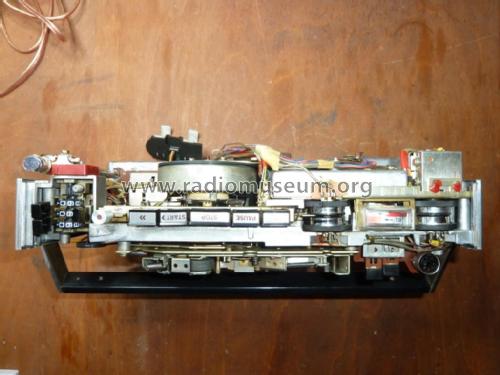

• Picture

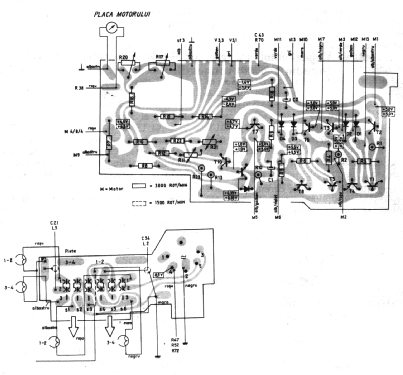

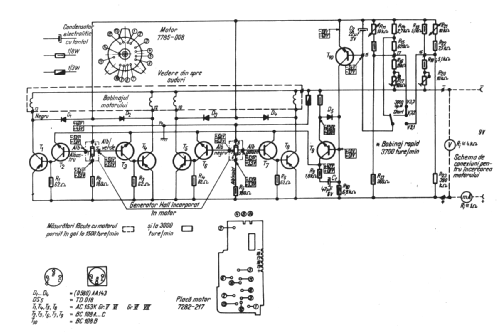

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 26

• Semiconductors
• BC108 BC109 BC181 AC188 AD161 AD162 AC153 BF185

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 10 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Details
• Tape Recorder

• Power type and voltage
• Dry Batteries / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: TK2400 FM Automatic [1968] - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 350 x 220 x 110 mm / 13.8 x 8.7 x 4.3 inch

• Notes
• Transistoren teilweise mehrfach vorhanden.
  Grundig Tonbandgerät mit Rundfunkteil TK 2400 FM Automatic.
  Vierspur-Mono; Bandgeschwindigkeiten: 4,75/9,5 cm/s; Spulen-Ø: 13 cm; Frequenzumfang bei 9,5 cm/s: 60···15000 Hz; Netzbetrieb mit einsetzbarem Netzteil TN12 Universal möglich.

• Net weight (2.2 lb = 1 kg)
• 5.3 kg / 11 lb 10.8 oz (11.674 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1968/1969
