FM-Standard-Boy 201E

FM-Standard-Boy 201E; Grundig Radio- (ID = 318391) Radio FM-Standard-Boy 201E; Grundig Radio- (ID = 318392) Radio

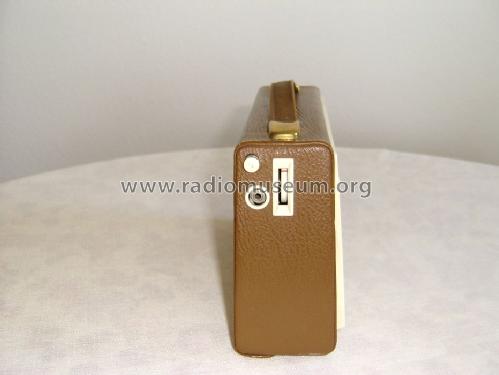

FM-Standard-Boy 201E; Grundig Radio- (ID = 318393) Radio FM-Standard-Boy 201E; Grundig Radio- (ID = 318394) Radio
Use red slider bar for more.
FM-Standard-Boy 201E; Grundig Radio- (ID = 318391) Radio
Grundig Radio-: FM-Standard-Boy 201E [Radio] ID = 318391 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM-Standard-Boy 201E, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1961 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Superheterodyne (common)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 2 × 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: FM-Standard-Boy 201E - Grundig Radio-Vertrieb, RVF,
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 230 x 150 x 70 mm / 9.1 x 5.9 x 2.8 inch
Notes

Exportversion vom UKW-Standard-Boy.
Gehäuse Rindleder hellbeige, azaleenrot oder kaffeebraun,
Kunststoff-Einsatz Frontseite elfenbein.
FM 87.5-108 MHz, SW 6-13 MHz.

Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)

Model page created by Bernhard Nagel. See "Data change" for further contributors.
