Frequenzzähler FZ-250

Frequenzzähler FZ-250; Grundig Radio- (ID = 615463) Equipment Frequenzzähler FZ-250; Grundig Radio- (ID = 615464) Equipment

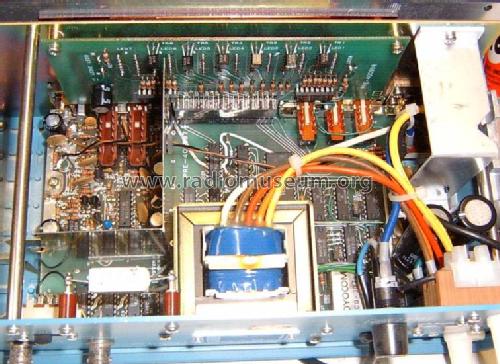

Frequenzzähler FZ-250; Grundig Radio- (ID = 615465) Equipment Frequenzzähler FZ-250; Grundig Radio- (ID = 1133475) Equipment
Use red slider bar for more.
Frequenzzähler FZ-250; Grundig Radio- (ID = 615463) Equipment
Grundig Radio-: Frequenzzähler FZ-250 [Equipment] ID = 615463 933x454
Select picture or schematic to display from thumbnails on the right and click for download.
For model Frequenzzähler FZ-250, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1980 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Frequenzzähler FZ-250 - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 285 x 110 x 175 mm / 11.2 x 4.3 x 6.9 inch
Notes 2 Eingänge: 10 Hz-120 MHz / 1 MOhm und 50 MHz-250 MHz / 50 Ohm; alle Eingänge mit BNC-Buchse.
Metallgehäuse hammerschlaglackiert, blau mit Tragegriff,
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
