For model GDM312 Universal, Grundig (Radio-Vertrieb, RVF, Radiowerke):

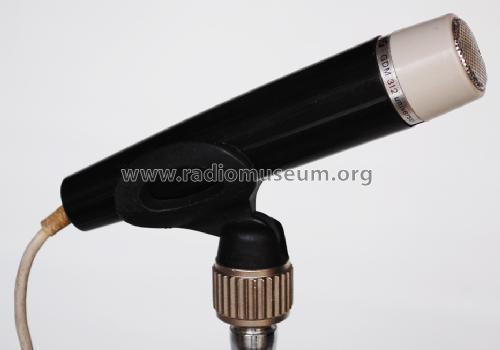

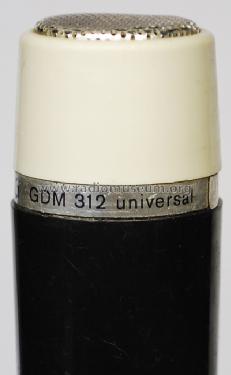

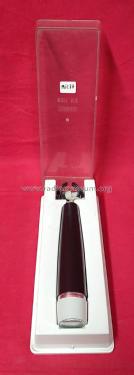

Grundig GDM 312

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1966 Category: Microphone or Pick-up element
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: GDM312 Universal - Grundig Radio-Vertrieb, RVF,
Material Various materials
Dimensions (WHD) 25 x 145 x 25 mm / 1 x 5.7 x 1 inch
Notes Dynamisches Mikrofon mit Kugelcharakteristik. Anschlusskabel mit 3-poligem DIN-Stecker, Metallbügel zum Aufstellen. (vgl. hierzu GDM317 Kugel) Frequenzbereich 150-12000 Hz, 200 Ohm und 1,5mV/Pa Empfindlichkeit. Wurde mitgeliefert mit Grundig-Modellen: TK120, TK125 de Luxe und TK140 de Luxe.
Net weight (2.2 lb = 1 kg) 0.1 kg / 0 lb 3.5 oz (0.22 lb)
Collectors' prices
Source of data -- Collector info (Sammler)
Literature/Schematics (1) -- Original prospect or advert

Model page created by Klaus Ortwein. See "Data change" for further contributors.
