HF260; Grundig Radio- (ID = 490755) Radio

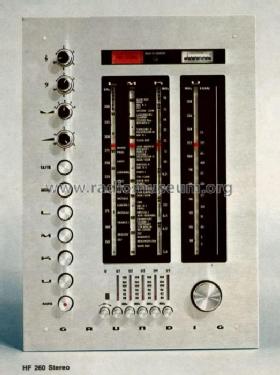

Grundig Radio-: HF260 [Radio] ID = 490755 523x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model HF260, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Original prospekt .

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1970/1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 26:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: HF260 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Chassis only or for «building in»
Dimensions (WHD) 260 x 370 x 200 mm / 10.2 x 14.6 x 7.9 inch
Notes Stereo-Steuerteil. Vollstereo, NF-Verstärker mit 2 Endstufen je 7,5 W (Musik).
Einbauchassis mit Holzzarge nussbaumfarben, Frontplatte Metall.
External source of data Erb
Source of data Handbuch VDRG 1970/1971
