- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1970/1971
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 28018
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Original prospekt.
Original prospekt.
Q: Grundig, Produkt-Katalog '70

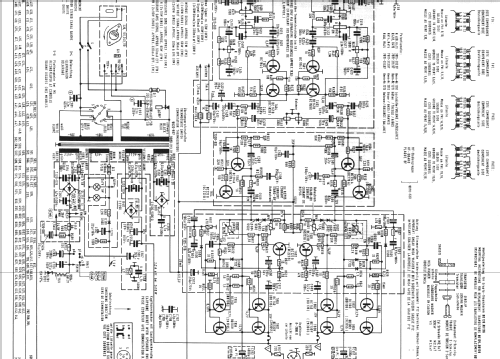

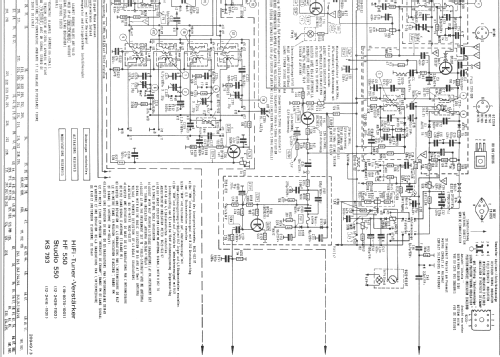

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 45
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 10 AM circuit(s) 15 FM circuit(s)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 20 W (30 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: HF550 - Grundig Radio-Vertrieb, RVF,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 260 x 370 x 200 mm / 10.2 x 14.6 x 7.9 inch
- Notes
-
HiFi-Stereo-Steuerteil. NF-Verstärker mit 2 Endstufen je 10 W (Sinus). 9+1 UKW-Stationstasten, die 10. Stationstaste schaltet auf Hauptskala und Handabstimmung.
Einbauchassis mit Holzzarge, nussbaumfarben.
- Net weight (2.2 lb = 1 kg)
- 9.5 kg / 20 lb 14.8 oz (20.925 lb)
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1970/1971
- Mentioned in
- - - Manufacturers Literature (Grundig Technische Informationen 3/1970)
- Other Models
-
Here you find 6196 models, 5420 with images and 4191 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Literature
The model is documented in the following literature.
