Hi Sensitivity 5-Band AM/FM/SW BCL Receiver S350

Grundig (Radio-Vertrieb, RVF, Radiowerke)

  • Year
  • 2003
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 233405
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, more than 2 SW bands plus FM or UHF.
  • Power type and voltage
  • Batteries / addl. power jack / 4 x 1,5/ 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Hi Sensitivity 5-Band AM/FM/SW BCL Receiver S350 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 10.5 x 7 x 3 inch / 267 x 178 x 76 mm
  • Notes
  • Grundig Portable AM/FM/SW 1-3 BCL Receiver Model S350.
    Padded carry strap, pullout antenna.
    Covers the standard AM/MW broadcast band (525-1710 kHz), the FM band (87-108 MHz) and continuous shortwave from 3 to 28 MHz.
    Shortwave is broken up into three segments (SW1, SW2, SW3).

    Produced by TECSUN. Sold as TECSUN BCL-2000; and as GRUNDIG S350 and ETON S350

  • Net weight (2.2 lb = 1 kg)
  • 3 lb 5 oz (3.313 lb) / 1.504 kg
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model Hi Sensitivity 5-Band AM/FM/SW BCL Receiver is part of the collections of the following members.

 Forum

Forum contributions about this model: Grundig Radio-: Hi Sensitivity 5-Band AM/FM/SW BCL Receiver S350

Threads: 1 | Posts: 2

Mein S350 lässt sich nicht einschalten. Wenn er Strom bekommt, erscheint zwar die Digitalanzeige mit der Zeitangabe, aber wenn man einschalten will, wird alles dunkel. Erst ein RESET ruft die Uhr wieder hervor.

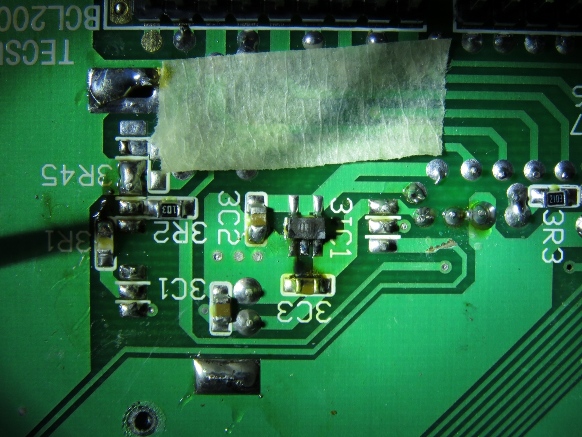

Nach langem Suchen nach einen Schaltplan werde ich fündig. Der Fehler ist ein 5-Volt-Regler auf der Computer-Platine, dessen Strom die Radioplatine und die Stromfresser auf der Computerplatine (Licht!) betreibt.



Er befindet sich unter der Abschirmung und ist ein chinesischer smd-Typ, der ungebräuchlich ist hierzulande. Ausgelötet. Ersetzt durch L78L05, von Transistorgrösse, oben auf der Platine eingelötet.



Strom fliesst, Licht brennt, Frequenz erscheint, Radio läuft, Reparateur glücklich.
