• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1973–1975

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 104429

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

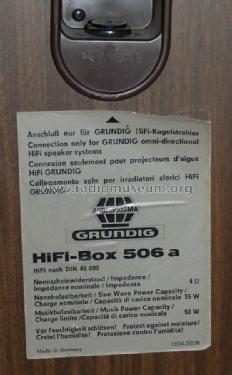

• Model: HiFi-Box 506 Audioprisma - Grundig Radio-Vertrieb, RVF,

• Dimensions (WHD)
• 530 x 280 x 260 mm / 20.9 x 11 x 10.2 inch

• Notes
• Impedanz 4 Ohm, Belastbarkeit 35 W, Frequenzgang 35-26000 Hz, 1 Tieftöner 204 mm, 1 Kalottenhochtöner 117 mm, Schallwand mit Audioprisma-Verkleidung. Farbvarianten: Nußbaum (298,- DM), weiß (318,- DM).

• Net weight (2.2 lb = 1 kg)
• 12.8 kg / 28 lb 3.1 oz (28.194 lb)

• Price in first year of sale
• 298.00 DM

• Source of data
• Handbuch VDRG 1973/1974

Die GRUNDIG Zweiweg-Boxenfamilie, Grundig Techn. Information (TI), W.Bart, 2/1973, S.129ff.

603 KB

• Documents regarding this model

• Author
• Model page created by Lars Brötje. See "Data change" for further contributors.
