• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1982/1983

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 228615

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

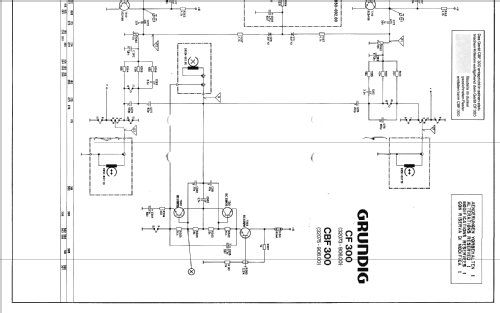

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: HiFi-Cassettendeck CF300 - Grundig Radio-Vertrieb, RVF,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 450 x 120 x 280 mm / 17.7 x 4.7 x 11 inch

• Notes

• Mit Dolby-NR-Einheit und LED Aussteuerungsanzeige; dreistelliges Bandzählwerk.

  Laufwerk CL100-23 weitgehend identisch mit CL100-21 (s.a. CF400, CF4000, CBF400).

  Gehäuse in metallic oder braun.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
