HiFi Kompaktanlage M17_c
Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1997 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 296906
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

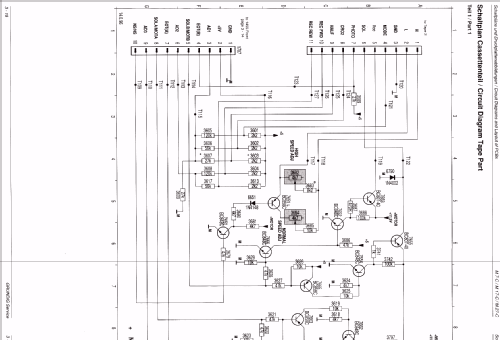

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 80 W (120 W max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: HiFi Kompaktanlage M17_c - Grundig Radio-Vertrieb, RVF,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 265 x 310 x 360 mm / 10.4 x 12.2 x 14.2 inch
- Notes
-
Grundig HiFi Kompaktanlage M17-C mit CD Spieler und Cassette Doppel Deck.

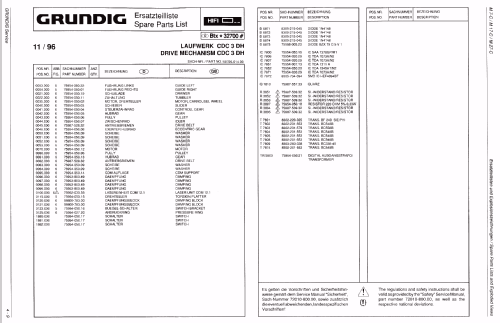

- Literature/Schematics (2)
- -- Original-techn. papers.
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
