HiFi-Lautsprecher-Box 40a

Grundig (Radio-Vertrieb, RVF, Radiowerke)

  • Year
  • 1966–1968
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 100447
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • 6 Loudspeakers / Ø 25 cm = 9.8 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: HiFi-Lautsprecher-Box 40a - Grundig Radio-Vertrieb, RVF,
  • Dimensions (WHD)
  • 610 x 360 x 250 mm / 24 x 14.2 x 9.8 inch
  • Notes
  • Impedanz 5 Ohm, Belastbarkeit 30 W, Frequenzgang 40-20000 Hz, 1 Mitteltöner 176×126 mm, 4 Hochtöner 69 mm, Varianten: Nußbaum mattiert, Teak geölt.
  • Price in first year of sale
  • 360.00 DM
  • Mentioned in

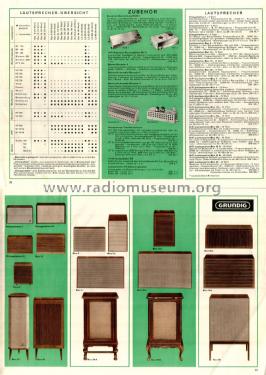

  • -- Original prospect or advert
  • Author
  • Model page created by Lars Brötje. See "Data change" for further contributors.
