• Year
  • 1967–1969
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 101385
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • 3 Loudspeakers / Ø 20.4 cm = 8 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: HiFi-Lautsprecher-Box 412 - Grundig Radio-Vertrieb, RVF,
  • Dimensions (WHD)
  • 390 x 240 x 230 mm / 15.4 x 9.4 x 9.1 inch
  • Notes

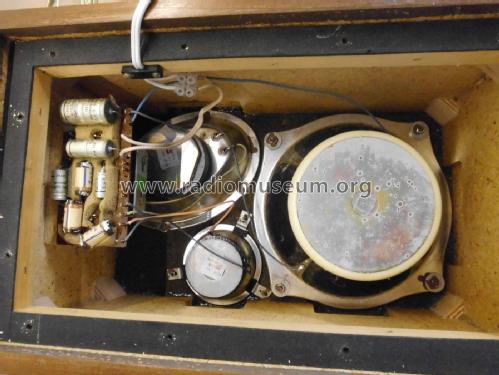

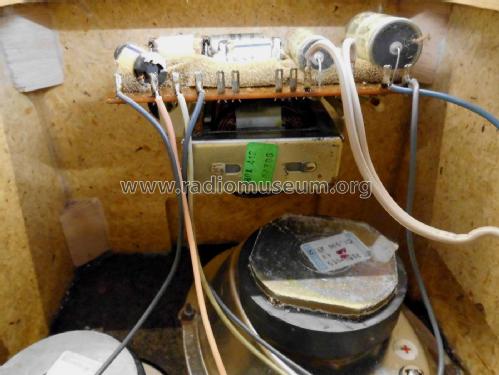

  • Impedanz 5 Ohm; Belastbarkeit 30 W; Frequenzgang 40-20000 Hz. 1 Tieftöner 204 mm, 1 Mitteltöner 176x126 mm, 1 Hochtöner 88 mm, Farbvarianten: Nußbaum mattiert, Teak natur, Palisander mattiert (Preis 218 DM).
  • Price in first year of sale
  • 208.00 DM
  • Mentioned in
  • -- Original prospect or advert
  • Author
  • Model page created by Lars Brötje. See "Data change" for further contributors.
