HiFi-PreCeiver X55 - X55a; Grundig Radio- (ID = 1716576) Radio
Grundig Radio-: HiFi-PreCeiver X55 - X55a [Radio] ID = 1716576 933x508

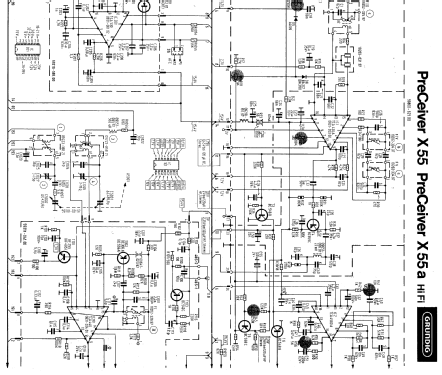

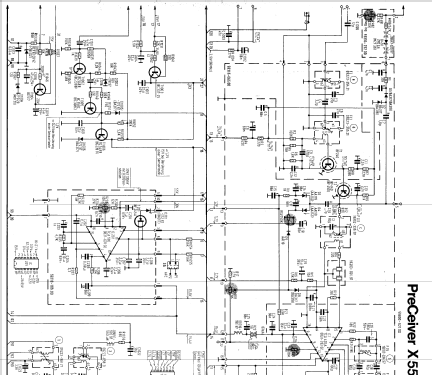

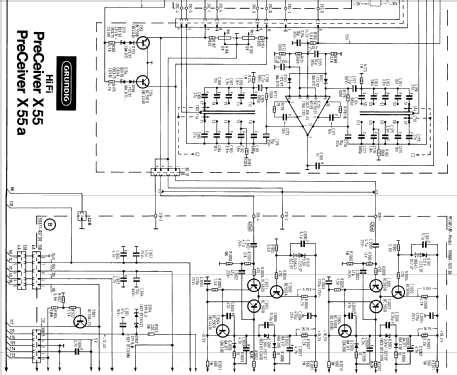

Select picture or schematic to display from thumbnails on the right and click for download.
For model HiFi-PreCeiver X55 - X55a, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: HiFi-PreCeiver X55 - X55a - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 150 x 320 inch / 13716 x 3810 x 8128 mm
Notes

ICs: 22
Gehäuse: graphit-metall, Front metallfinish oder schwarz.
Tuner-Vorverstärker für die Ansteuerung von Aktivboxen oder separaten Endstufen.
Tunoscope für UKW-Mittenabstimmung, Multipath-Anzeige, 7 UKW-Senderspeicher, digitale Frequenz- und Kanalanzeige bei FM und digitale Frequenzanzeige bei AM. Steuerung einer Rotorantenne möglich.
NF-Teil mit 3-fach Klangregelung, Linear-Contour-Schaltung und Rauschfilter. Line-Ausgang, 2 Kopfhörer-Ausgänge.

Ausgänge für Aktivboxen 1 Volt / 200 Ohm.

Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Mentioned in Funkschau (6.1978)
Literature/Schematics (1) Katalog RFP 1978

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
