HiFi-Receiver 40
Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1976–1978
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 124501
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

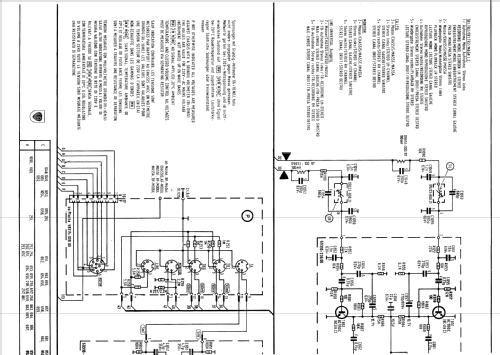

Bild aus Servicedoku.
Grundig Katalog - Super HiFi 1977
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 94
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-130; 220-240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: HiFi-Receiver 40 - Grundig Radio-Vertrieb, RVF,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 540 x 150 x 320 mm / 21.3 x 5.9 x 12.6 inch
- Notes
- 2 Ausführungen: Gehäuse metallic, Zierteile alufärbig oder metallic/dunkel
ICs: 13.
Ausgangsleistung: 2× 70 W (Musik) bei Stereo bzw. 4× 60 W (Musik) bei 2-Raum-Stereo.
- Source of data
- Handbuch VDRG 1976/1977
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
