HiFi-Receiver R45 (a)

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1977–1979

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 124468

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture
• Schematics

Previous Next

Previous Next

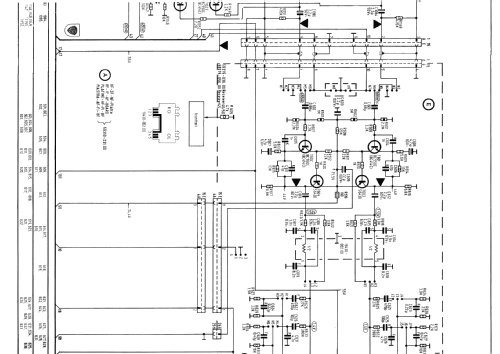

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-130; 220-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: HiFi-Receiver R45 - Grundig Radio-Vertrieb, RVF,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 540 x 150 x 320 mm / 21.3 x 5.9 x 12.6 inch

• Notes
• 2 Ausführungen Receiver R 45:
  Gehäuse graphit-metallic, Front metallfinish, Skala schwarz
  Gehäuse graphit-metallic, Front schwarz, Skala metallic.

  2 Ausführungen Receiver R 45a:
  Gehäuse graphit-metallic, Front metallfinish, Skala metallic-champagne
  Gehäuse graphit-metallic, Front schwarz, Skala metallic-braun.
  Ausgangsleistung: 2 × 50 W (Sinus).

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Source of data
• Handbuch VDRG 1977/1978

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
